PBTCF161734 Truck Cross Flow Paint Booth
Built for large-scale finishing applications, the PBTCF161734 Truck Cross Flow Paint Booth provides a spacious 30-foot interior, high-capacity exhaust airflow, and durable galvanized steel construction for coating trucks, commercial vehicles, and large equipment.
Designed for Trucks, Trailers & Large Equipment

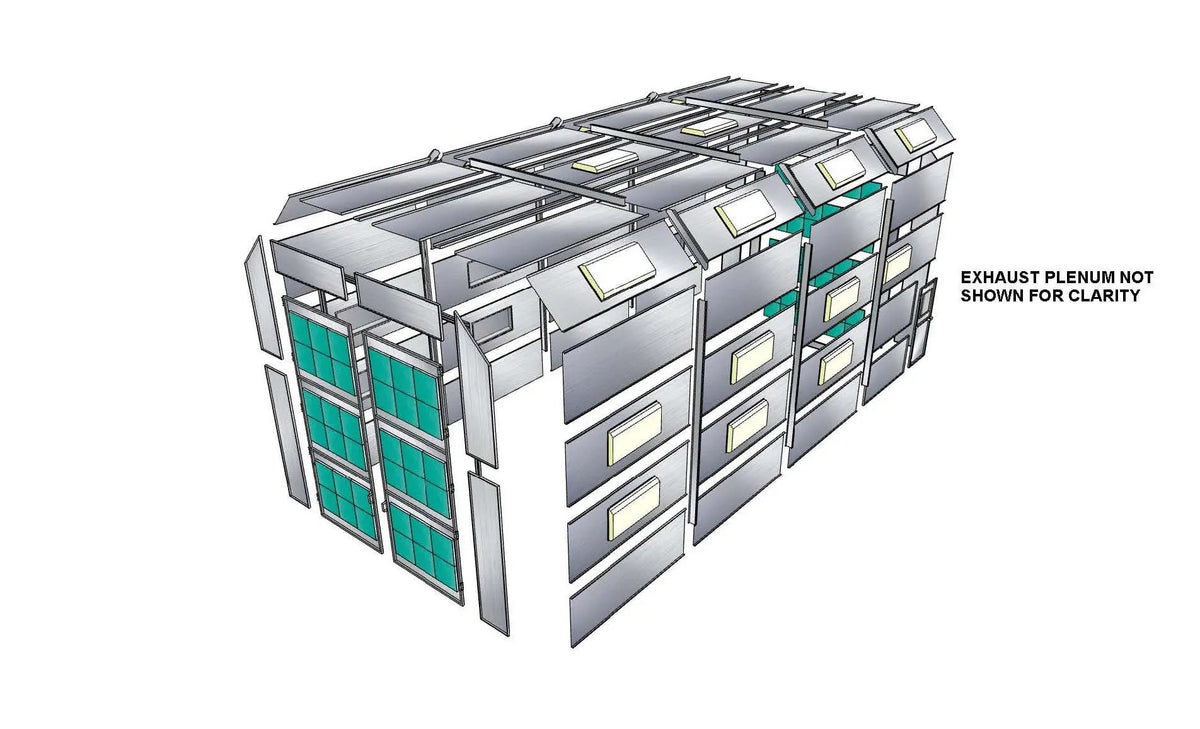

The Merchant 1 Manufacturing PBTCF161734 Truck Cross Flow Paint Booth is designed for professional finishing operations that require additional working space for large vehicles and equipment. With a 30-foot interior length, 16-foot interior width, and 16-foot interior height, this booth provides room for a variety of commercial coating applications.
Its crossflow configuration uses an exhaust system rated at 25,600 CFM at 1/4" static pressure. The booth features 18-gauge G-90 galvanized steel construction, LED lighting with glass, intake and exhaust filter pads, and a manometer/draft gauge. Additional options allow you to tailor the booth to your facility, electrical configuration, and workflow.
Need a different size or configuration? Merchant 1 Manufacturing offers customization options to help accommodate your vehicle dimensions, available shop space, and project requirements. Contact our team to discuss a custom booth configuration.
Key Features
- Large interior workspace: 16' wide × 16' high × 30' deep for truck, trailer, and large equipment finishing applications.
- Heavy-duty construction: Built with 18-gauge G-90 galvanized steel.
- High-capacity exhaust: 42" fan with a 5 HP, three-phase motor, rated at 25,600 CFM at 1/4" static pressure.
- LED lighting: Seventeen 2' × 4' LED fixtures with glass.
- Intake and exhaust filtration: Uses 20" × 20" filter pads for the specified filtration locations.
- Included equipment: Manometer/draft gauge, hardware, and sealants.
- Configurable options: Available upgrades include control panels, exhaust ductwork, alternate motor configurations, and drive-through doors.
PBTCF161734 Specifications
| Model | PBTCF161734 |

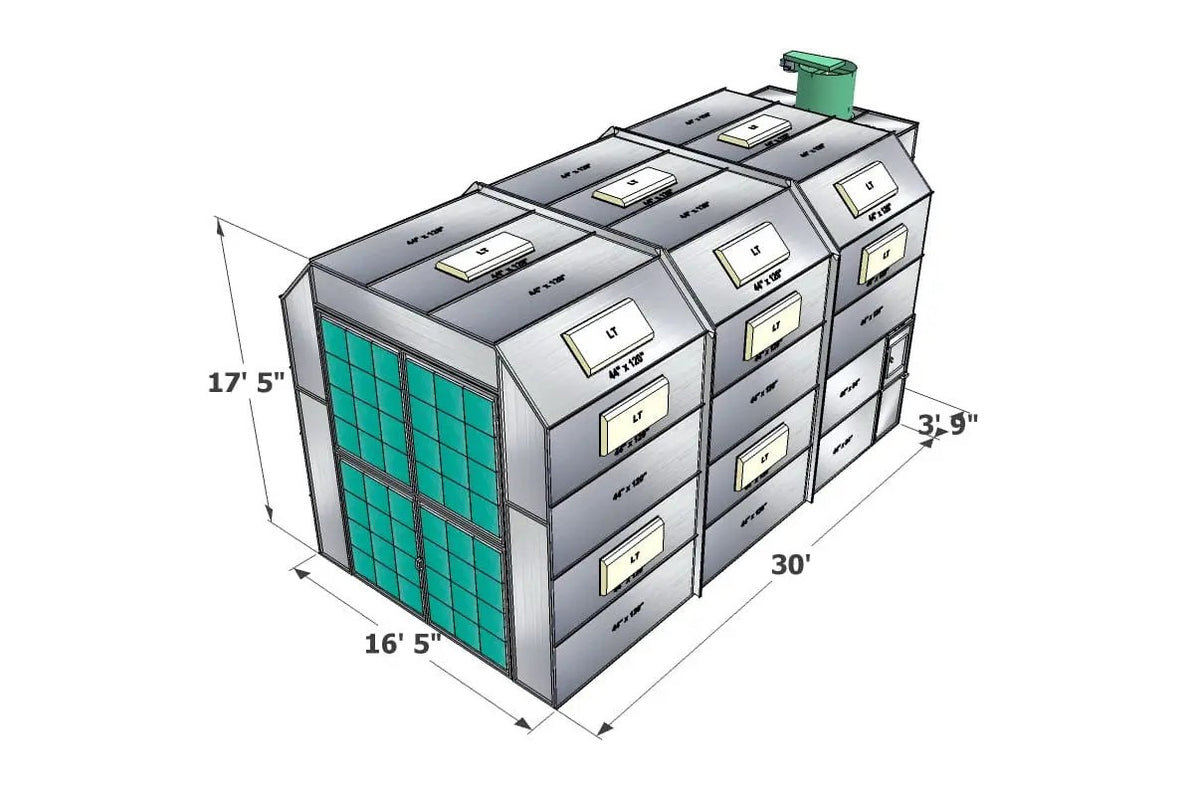

| Inside Dimensions | 16' W × 16' H × 30' L |
| Outside Dimensions | 17' W × 16'8" H × 34' L |
| Construction | 18-gauge G-90 galvanized steel |
| Front Door Opening | 11' W × 15' H |
| Lighting | 17 × 2' × 4' LED fixtures with glass |
| Exhaust Fan | 42" diameter fan |
| Motor | 5 HP, three-phase |
| Exhaust Capacity | 25,600 CFM at 1/4" static pressure |
| Filtration | 20" × 20" intake and exhaust filter pads |
| Included Accessories | Manometer/draft gauge, hardware, and sealants |
| Fire Suppression | Installer contacts available for your area; system and installation arrangements should be confirmed separately. |
Replacement Filter Options
Maintain your booth's filtration system with compatible replacement filter media.
Available Options & Upgrades
The following options are available at additional cost and are not included in the standard booth price. Contact our sales team for pricing, compatibility, and configuration details.
- Single-phase motor option: Available for qualifying electrical configurations.
- Exhaust ductwork package: 42" diameter × 8' long ductwork package.
- Bright white powder-coated finish: Powder-coated finish for the complete booth.
- Lighting and fan control panel: Control panel for booth lights and exhaust fan.
- High-end VFD control panel: Variable frequency drive panel with UL-listed components.
- Drive-through doors: Available for qualifying booth configurations and workflow requirements.
Electrical configuration note: VFD options may support certain single-phase input to three-phase output or three-phase input to three-phase output configurations. Compatibility depends on the selected motor, voltage, current, and drive specifications. Confirm the configuration with our team before ordering.
Configure Your Truck Paint Booth
Need additional length, drive-through access, or a specific electrical setup? Contact our team for a complete quote and help planning the right booth for your facility.
Request a Paint Booth QuoteCustomer Responsibilities & Installation
- Unloading: The customer is responsible for offloading the delivery truck. A forklift is required to unload the crate; a forklift with 60" fork length is recommended.
- Construction and installation: The customer is responsible for booth construction and installation, including electrical work. Installation instructions are provided, and our in-house design team is available to answer installation questions.
- Electrical installation: All electrical work for the paint booth and any associated air makeup unit (AMU) must be performed by a licensed electrician familiar with applicable national, state, and local electrical codes.
- Permits and fire suppression: The customer is responsible for determining and obtaining required local permits and arranging fire suppression where required. Our team can provide contacts for fire suppression system installers in your area.
Safety, codes, and installation: Paint booth installations must be evaluated for the intended coating materials, ventilation and airflow requirements, electrical configuration, fire protection, and applicable local codes. OSHA and NFPA 33 requirements may apply depending on the application and installation. Confirm the complete system design and installation with qualified professionals and the local authority having jurisdiction.
Certified components: Certain components may carry their own certifications or listings. Component certifications alone do not establish that the complete booth installation complies with every applicable code or standard.
