PBBS474 Bench Style Booth

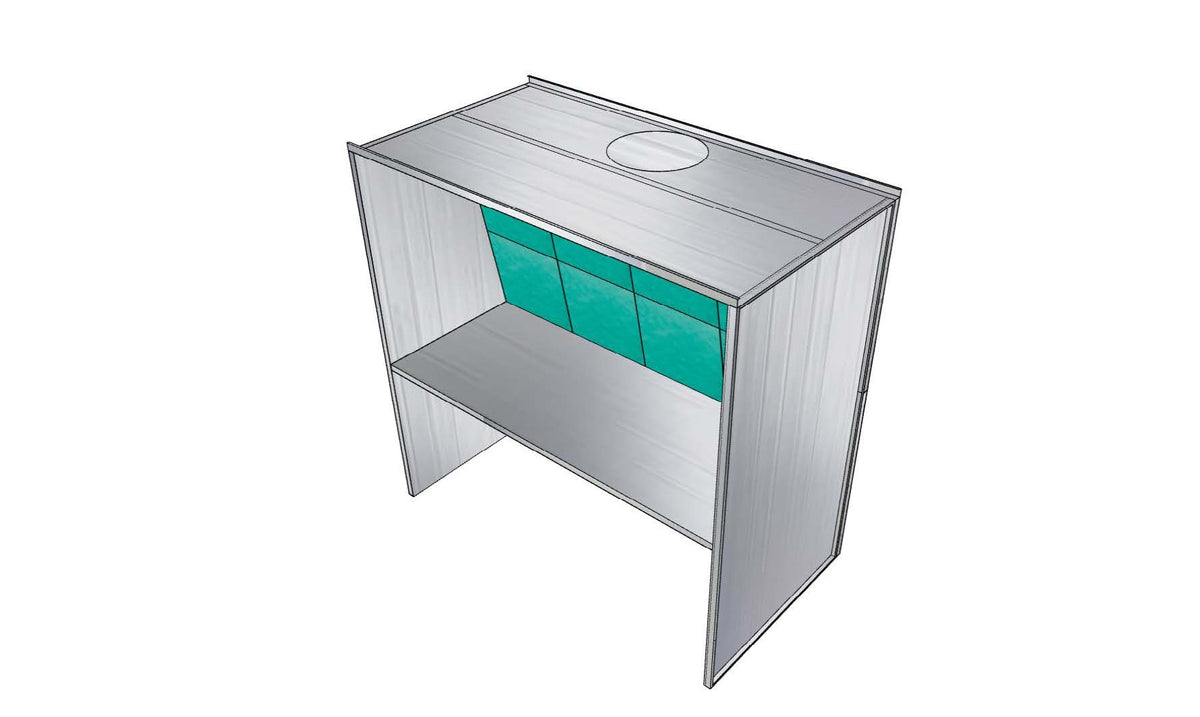

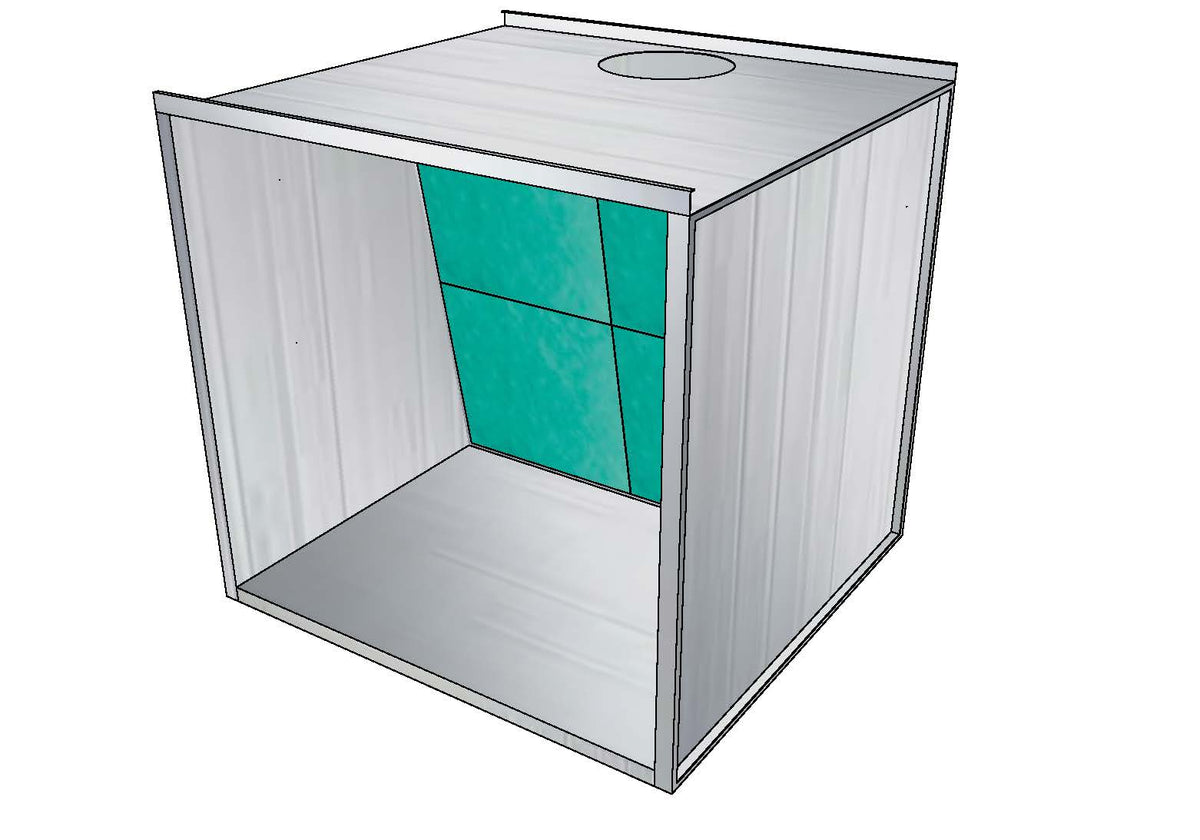

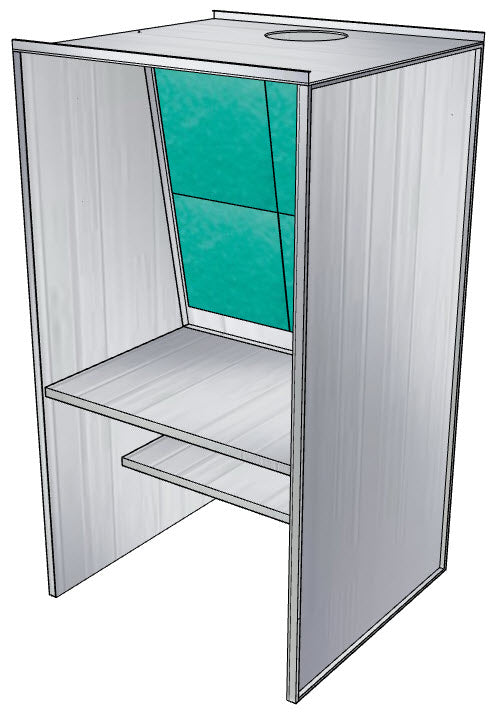

BENCH-STYLE PAINT BOOTH
The “Bench” paint booth is the ideal booth for hobbyist, small parts coating, and paint test or sampling. Cost-efficient, simple, and safe solution for isolating and exhausting your small parts handling/painting operations.
Free Shipping and Crate subject to freight and fuel surcharges
- US-manufactured paint booths - built in Reidsville, NC
- Designed for extended service and production requirements
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant
- Optimal / Code-compliant coating environment
- Standard and Custom size booths
- Multiple air flow types (or variants)
Why…..Merchant 1 Manufacturing:
- US manufactured booths – standard and custom-sized paint / spray booths
- Free Shipping and Crate subject to freight and fuel surcharges
- On-line and up-front pricing and expedited ‘total acquisition’ quotes
- Standard and customized booths for painting, powder-coating, storage, welding, blasting, etc.
- Highly configurable and adaptive manufacturing process
- A person that answers the phone, listens, and….works w/you toward a solution.
- Best pricing in the market -- no bells and whistles, unless you ask for it!
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical
- Local permitting and fire suppression (if req’d)
| MODEL NUMBER | PBBS474 |
| INSIDE DIMENSIONS | 3'8"Wide x 6'11"Tall x 3'8"Deep |
| OUTSIDE DIMENSIONS | 3'11"Wide x 7'2"Tall x 3'8"Deep |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT OPENING DIMENSIONS | 3'8"Wide x 6'11"Tall |
| EXHAUST SYSTEM | 12" Fan; .5 HP-3 PHASE MOTOR; 1930CFM @ 1/2" S.P. |
| FILTRATION | FOUR 20" X 20" EXHAUST FILTER PADS |
| HARDWARE AND SEALANTS | INCLUDED |
| SINGLE PHASE MOTOR | |
| 12" DIA X 8' LONG EXHAUST DUCTWORK PACKAGE | |
| POWDER COATED BRIGHT WHILE COMPLETE BOOTH | |
| CONTROL PANEL FOR LIGHTS & FAN | |
| CONTROL PANEL FOR LIGHTS & FAN w/VFD (Variable Freq. Drive) | $1600.00 |
BENCH-STYLE PAINT BOOTH CUSTOM SIZES:
| MODEL | PRICE | |
| PBBS474 | ||

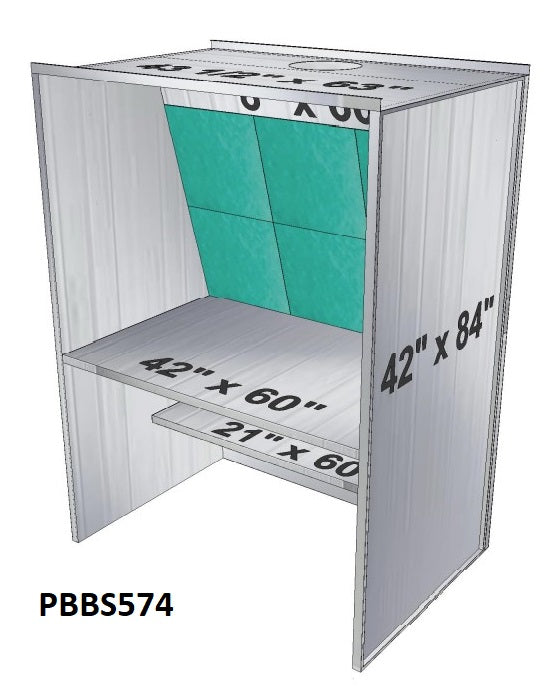

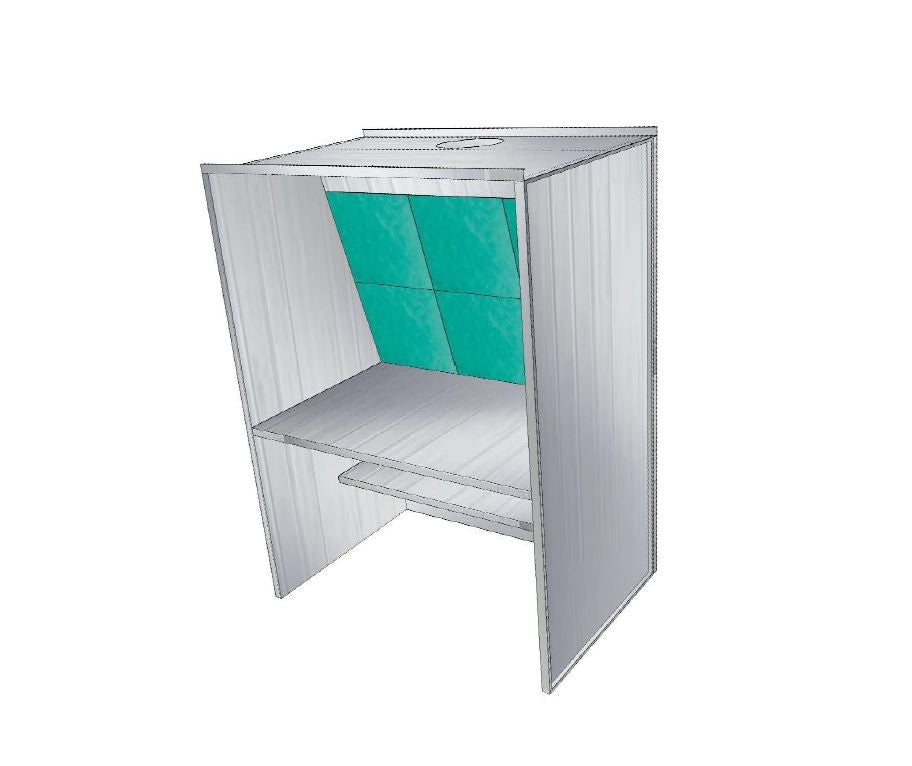

| PBBS574 | ||
| PBBS774 |
