PBTCF161734 Truck Cross Flow Paint Booth

PBTCF161734 Truck Cross Flow Paint Booth

$ 27,000.00

TRUCK CROSS-FLOW BOOTH

Truck (CF) booth is designed to accommodate large tractor trailers and large equipment for coating.  The booth comes in multiple sizes to facilitate the various applications (vehicle/equipment sizes) and shop sizes.

       Free Shipping and Crate subject to freight and fuel surcharges

  • US-manufactured paint booths - built in Reidsville, NC
  • Designed for extended service and production requirements
    • 18-gauge G-90 Galvanized steel
    • Certified sub-components (Fan/Motor; Filters; LED Lights)
    • OSHA and NFPA-33 compliant
  • Optimal / Code-compliant coating environment
  • Standard and Custom size booths
  • Multiple air flow types (or variants)

     Why…..Merchant 1 Manufacturing:

  • US manufactured booths – standard and custom-sized paint / spray booths
  • Free Shipping and Crate subject to freight and fuel surcharges
  • On-line and up-front pricing and expedited ‘total acquisition’ quotes
  • Standard and customized booths for painting, powder-coating, storage, welding, blasting, etc.
    • Highly configurable and adaptive manufacturing process
  • person that answers the phone, listens, and….works w/you toward a solution.
  • Best pricing in the market -- no bells and whistles, unless you ask for it!

      Customer Responsibilities:

  • Offloading of delivery truck
  • Construction / Installation to include electrical
  • Local permitting and fire suppression (if req’d)

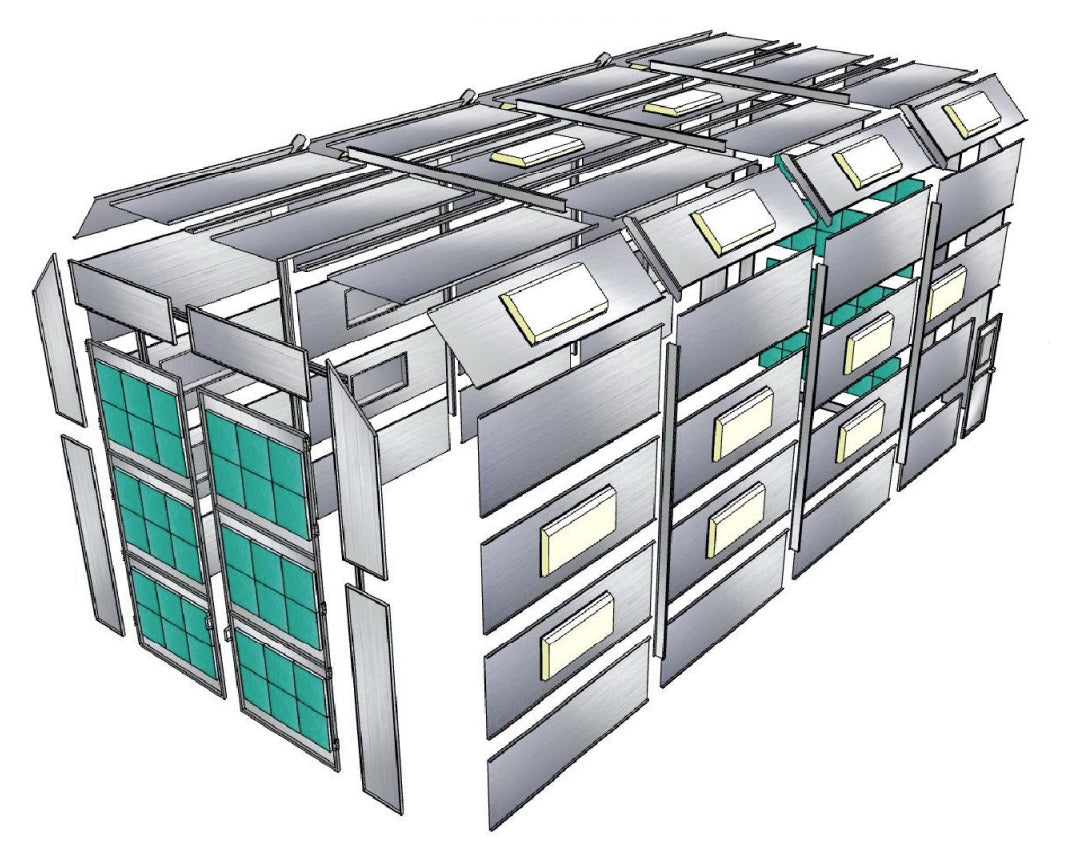

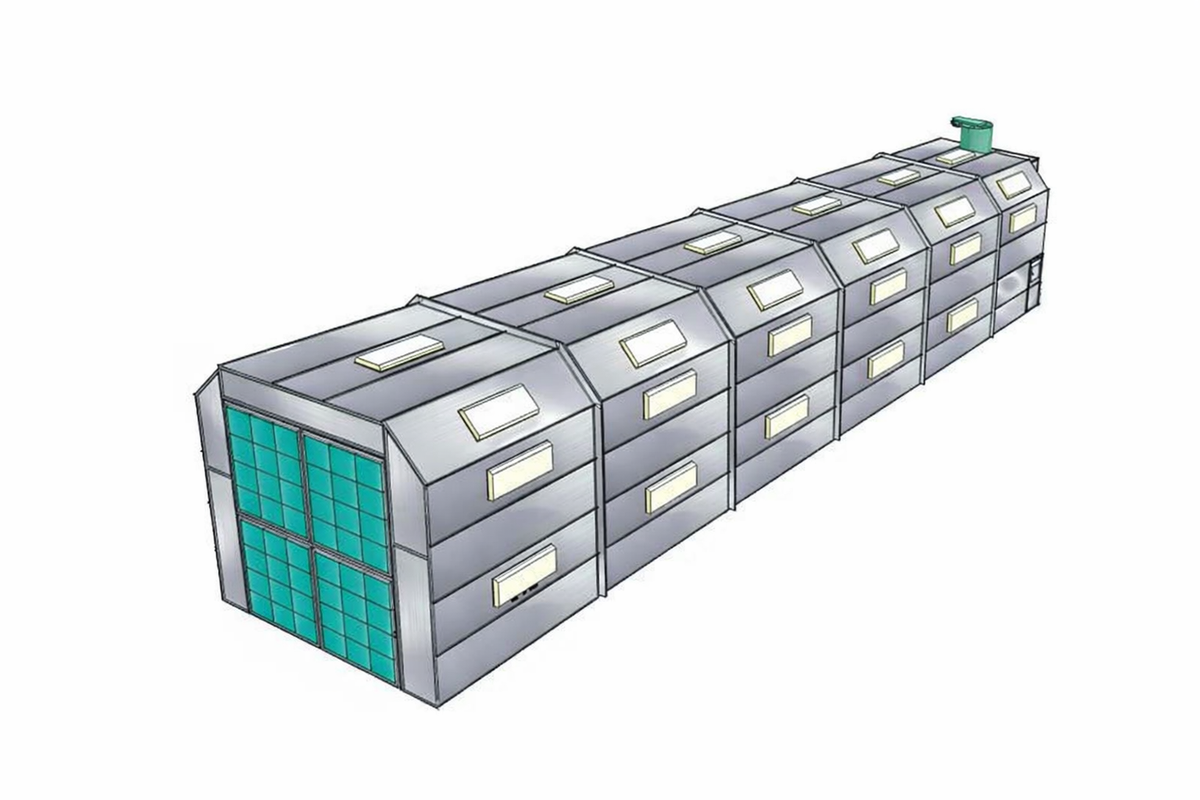

TRUCK CROSS FLOW: 30' BOOTH SHOWN CUSTOM SIZES AVAILABLE IN 30',40'.50' & 60' LENGTHSPRICES LISTED BELOW

PBTCF161734 Specifications:

MODEL NUMBER PBTCF161734
INSIDE DIMENSIONS 16'Wide x 16'Tall x 30'Deep
OUTSIDE DIMENSIONS 16'5"Wide x 16'8"'Tall x 33'9"Long
CONSTRUCTION 18 GAUGE G-90 GALVANIZED STEEL
FRONT DOOR OPENING DIMENSIONS 11'Wide x 15'Tall
LIGHTING SEVENTEEN 2' X 4' LED FIXTURES W/GLASS
EXHAUST SYSTEM 42" Fan; 5HP-3PHASE MOTOR; 23000 CFM @ 1/2 S.P.
FILTRATION 20" X 20" INTAKE & EXHAUST FILTER PADS
MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS INCLUDED



PBTCF161734 OPTIONS:
42" DIA X 8' LONG EXHAUST DUCTWORK PACKAGE $1,300.00
POWDER COATED BRIGHT WHITE COMPLETE BOOTH $4,400 - $5,800
CONTROL PANEL FOR LIGHTS & FAN $1000 - $1400
CONTROL PANEL w/VFD (Variable Freq. Drive) $1600 - $3400
FIRE SUPPRESSION SYSTEM - WE CAN PROVIDE INSTALLER CONTACTS FOR YOUR AREA Locally Procured
TRUCK CROSS-FLOW MODELS & PRICES:

MODEL(CROSS-FLOW)
PRICE
DIMENSIONS
PBTCF161734
$27,000.00
16'Wide X 17'5"Tall x 34'Deep
PBTCF161744
$31,000.00
16'Wide X 17'5"Tall x 44'Deep
PBTCF161754
$36,500.00
16'Wide X 17'5"Tall x 54'Deep
PBTCF161764
$39,500.00
16'Wide X 17'5"Tall x 64'Deep
