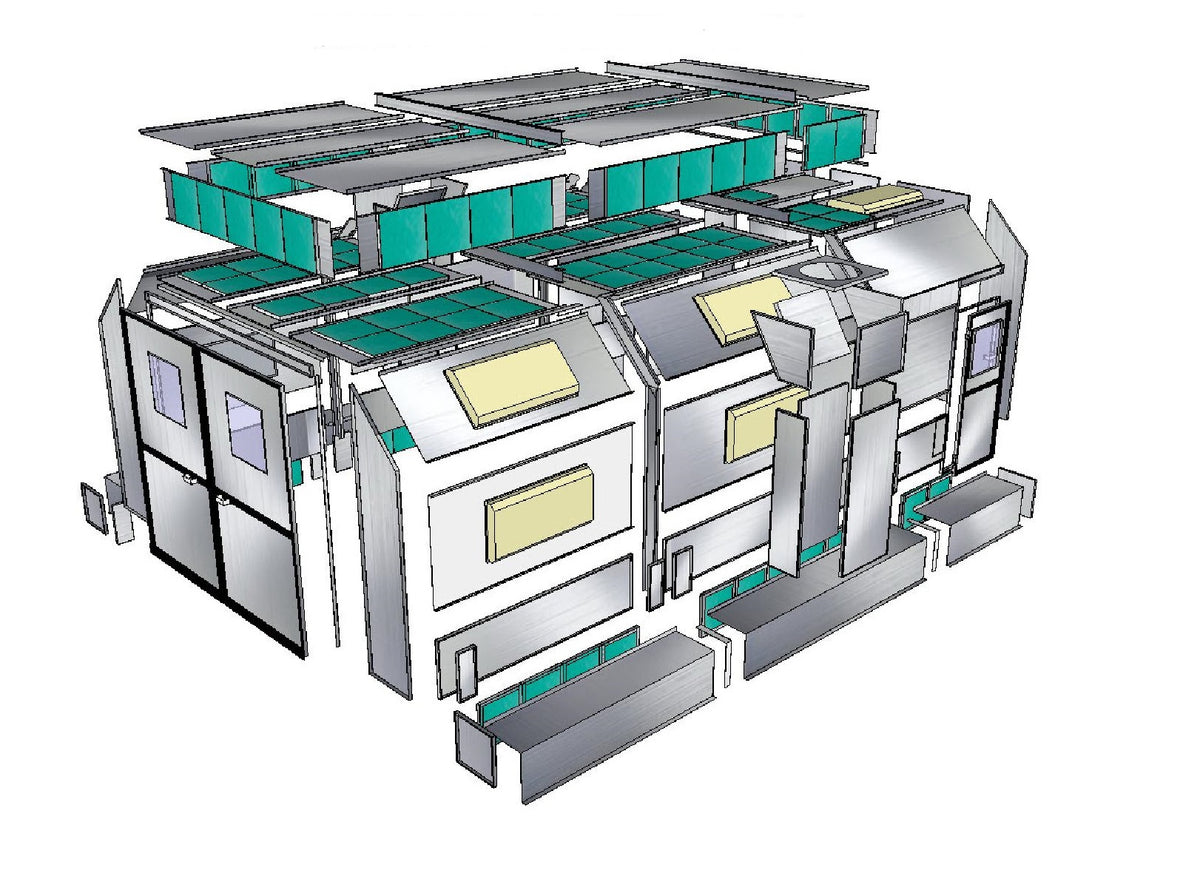

PBSDD181126B Side Down Draft Paint Booth – Air Intake Box
Built for demanding finishing environments, the PBSDD181126B combines a side down draft airflow configuration, dedicated air intake box, and dual-chimney exhaust system. With durable galvanized steel construction, extensive LED lighting, and a spacious interior, this custom-built booth is designed to support professional automotive and industrial painting operations.

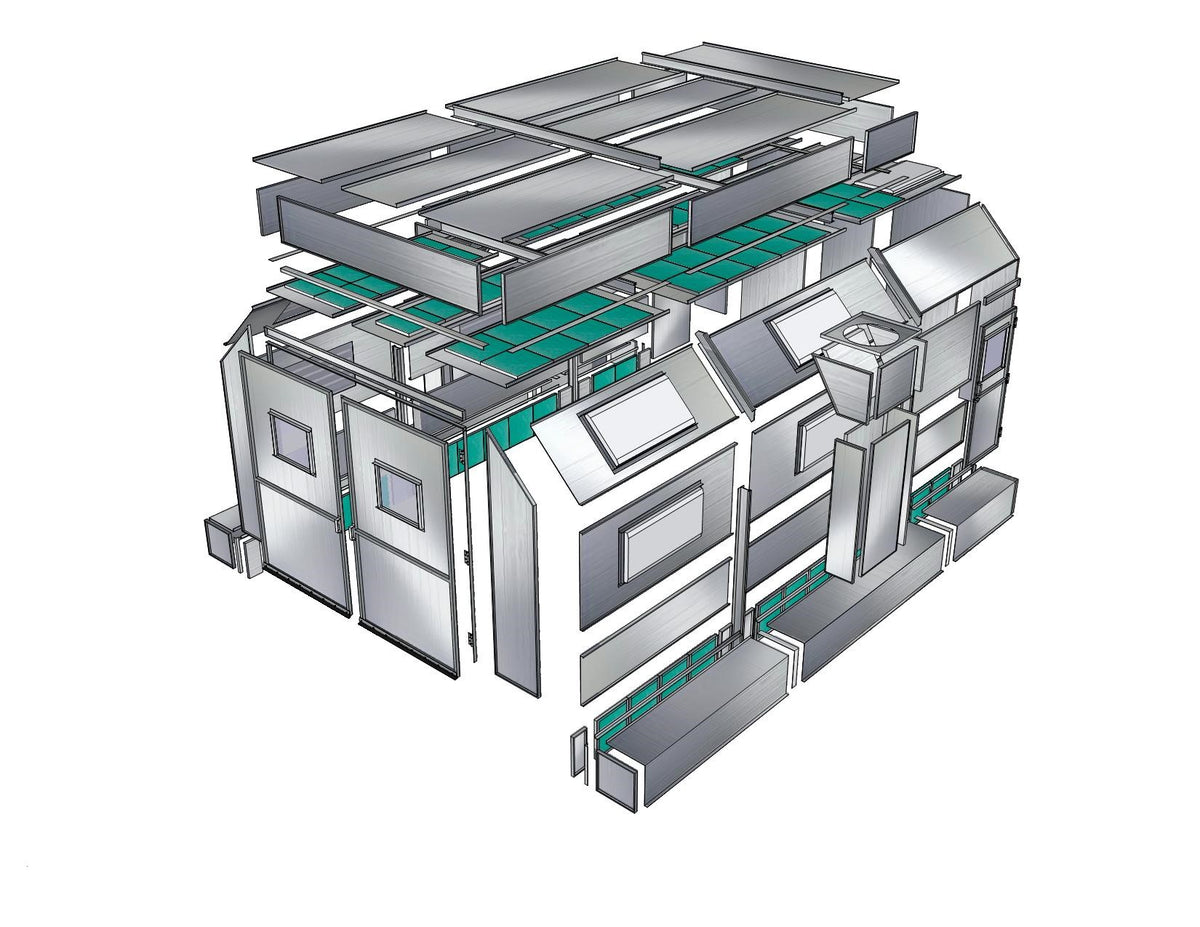

Professional Side Down Draft Airflow

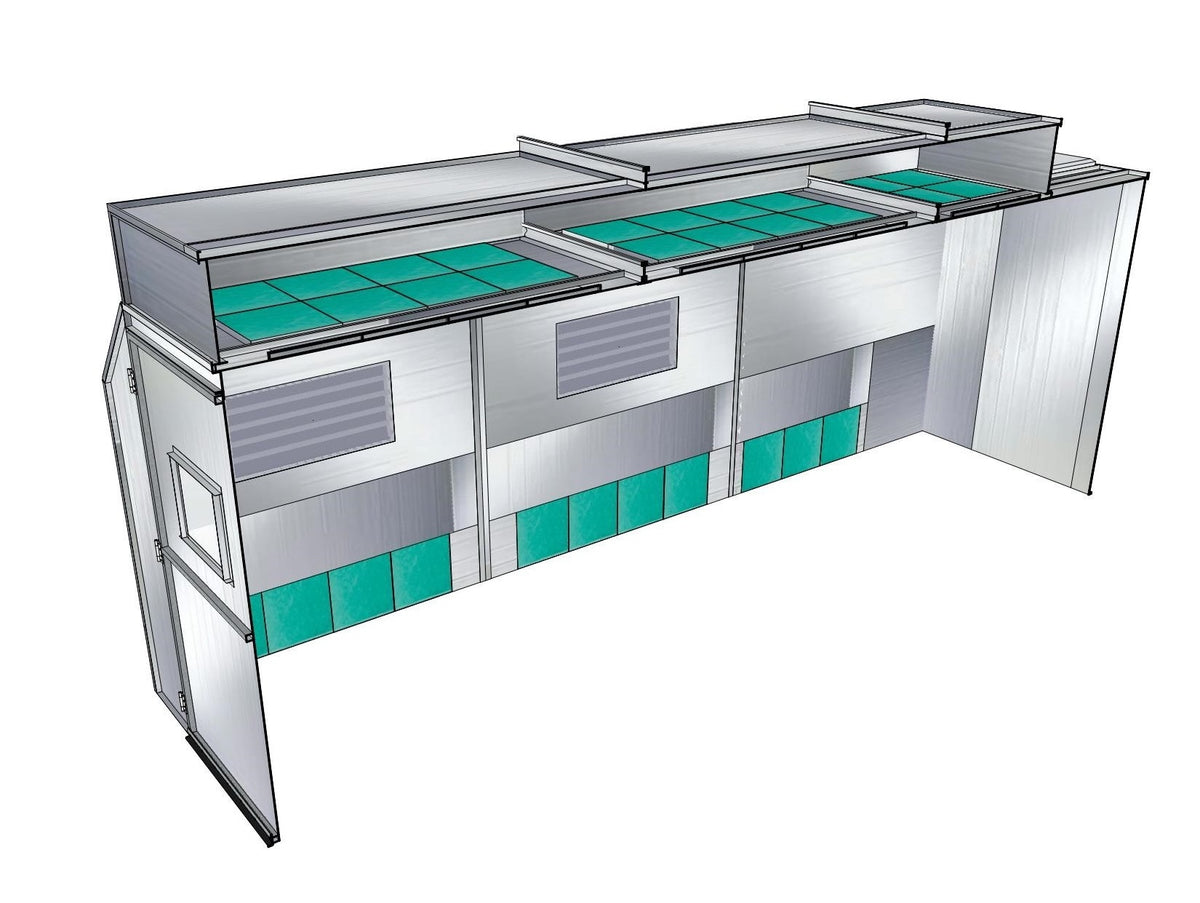

The PBSDD181126B is designed for finishing operations that require a dedicated intake configuration and substantial exhaust capacity. Its side down draft design brings air into the booth from the upper intake area and directs airflow downward through the work zone toward the exhaust system, helping manage airborne overspray and support a controlled painting environment.
The air intake box configuration works alongside the booth's filtration and ventilation systems to provide a dedicated intake arrangement. Two 24-inch exhaust fans and dual exhaust chimneys provide the specified airflow capacity, while ten 2' × 4' LED fixtures with glass provide illumination throughout the work area.
Manufactured using 18-gauge G-90 galvanized steel, this booth offers an interior measuring 14 feet wide by 25 feet 9 inches long. Merchant 1 Manufacturing builds paint booths in Reidsville, North Carolina, with customization available to help accommodate your facility, workflow, and finishing requirements.
Key Features & Benefits
- Side down draft airflow: Designed to direct air downward through the painting area toward the exhaust system.
- Dedicated air intake box: Provides a defined intake configuration for the booth's ventilation system.
- Dual-chimney exhaust: Two 24-inch exhaust fans with a listed 3 HP, three-phase motor configuration.
- Specified exhaust capacity: 15,900 CFM at 1/4" static pressure, as provided in the product specifications.
- Durable construction: Manufactured with 18-gauge G-90 galvanized steel panels.
- Bright work area: Ten 2' × 4' LED fixtures with glass.
- Intake and exhaust filtration: Uses 20" × 20" intake filters and exhaust filter pads.
- Customizable configuration: Optional ductwork, powder-coated panels, drive-through doors, and control panel upgrades are available.
Product Specifications
| General Booth Information | |
|---|---|
| Model Number | PBSDD181126B |
| Booth Style | Side Down Draft Paint Booth with Air Intake Box and Dual-Chimney Exhaust |

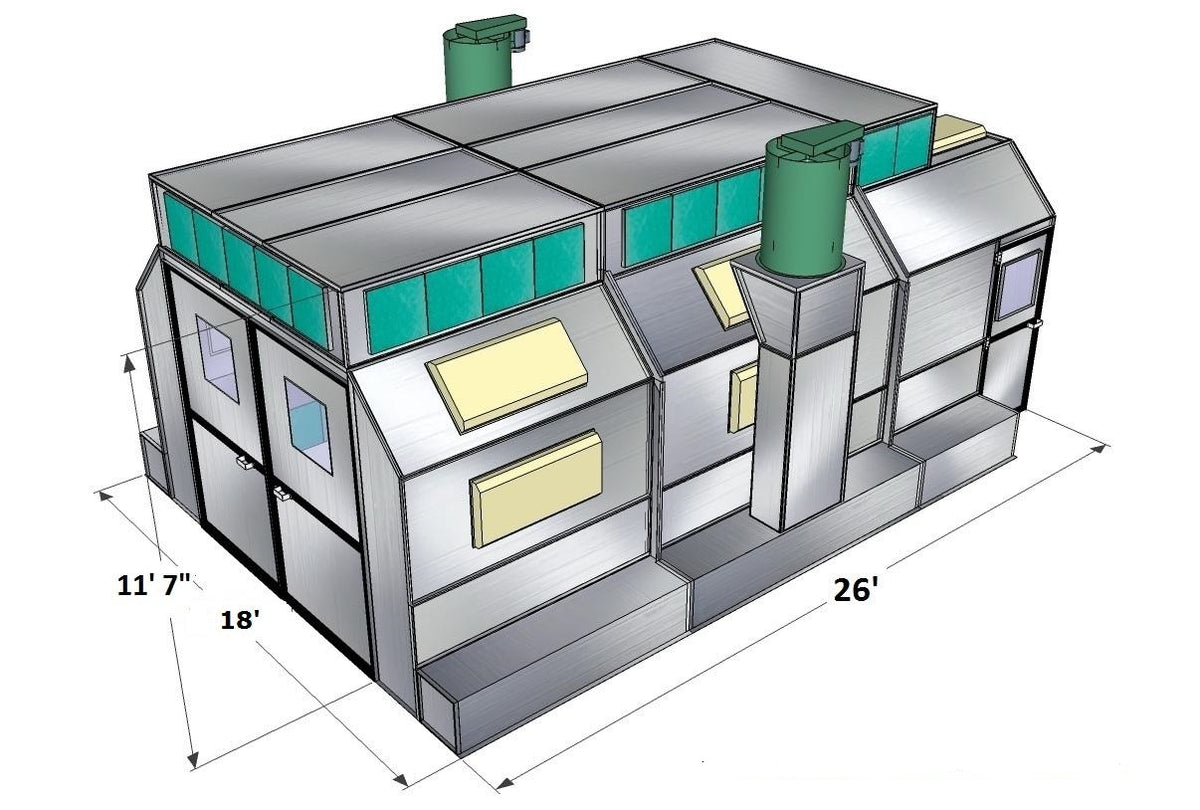

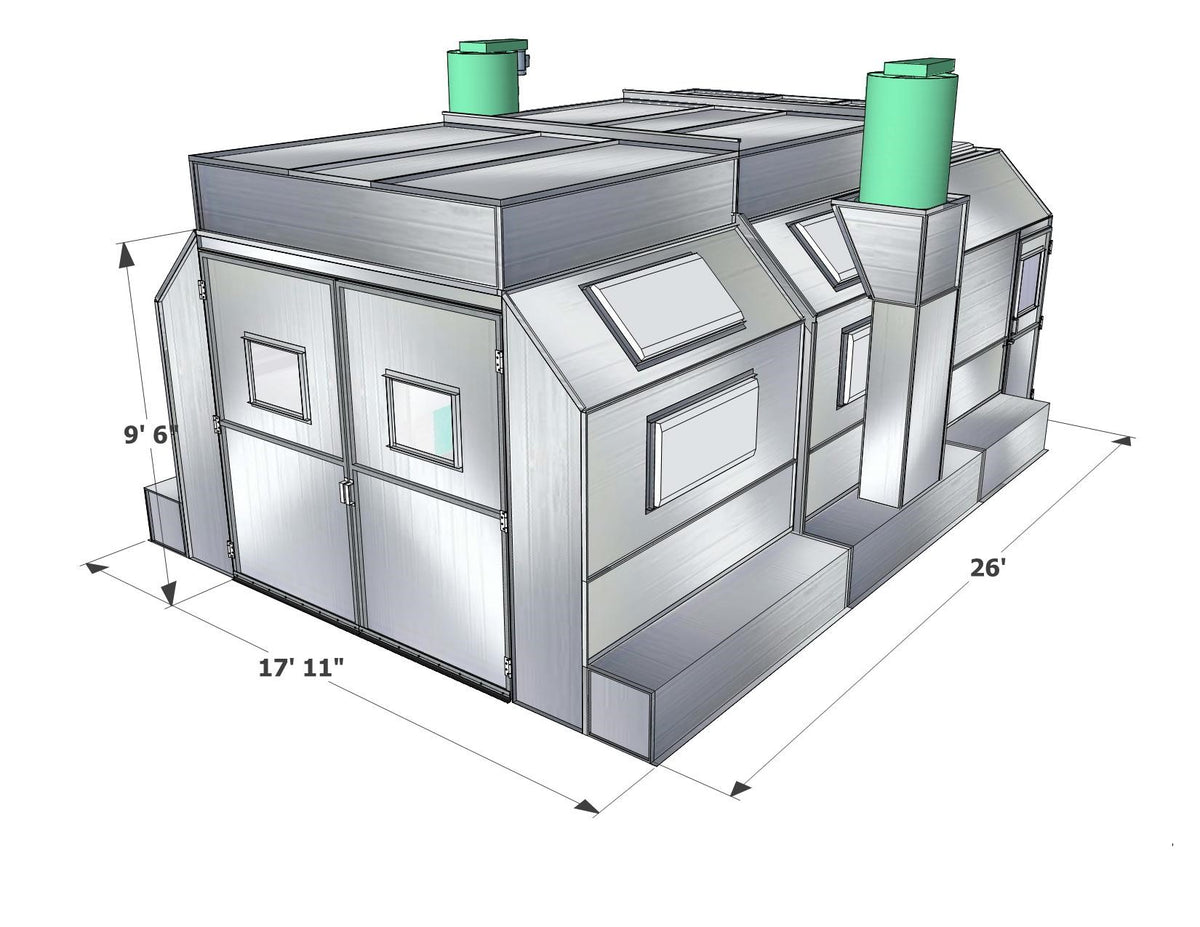

| Inside Dimensions | 14' W × 9'8" H × 25'9" L |
| Outside Dimensions | 18' W × 11'4" H × 26' L |
| Construction | 18-gauge G-90 galvanized steel |
| Front Door Opening | 10' W × 9' H |
| Man Access Door | One door with window, 3' W × 7' H |
| Lighting | Ten 2' × 4' LED fixtures with glass |
| Exhaust & Filtration | |
| Exhaust Configuration | Dual-chimney exhaust system |
| Exhaust Fans | Two 24-inch fans |
| Motor Specification | 3 HP, three-phase motor configuration as listed; confirm motor quantity and arrangement with the manufacturer |
| Exhaust Airflow Rating | 15,900 CFM at 1/4" static pressure, as specified |
| Intake Filters | 20" × 20" 300-series tacky intake filter panels |
| Exhaust Filters | 22-gram super-duty fiberglass exhaust filter media |
| Included Accessories | Manometer/draft gauge, hardware, and sealants |
Available Add-On Options
Customize your booth to better match your facility, electrical requirements, and preferred level of system control. Available options include:
- Single-phase motor option, subject to equipment compatibility
- 24" diameter × 8' long exhaust ductwork package
- Bright white powder-coated finish for all booth panels
- Drive-through doors
- High-end control panel with UL-listed components for lights and fan
- High-end VFD control panel with UL-listed components
Contact our sales team for a complete quote and to confirm available configurations, electrical requirements, and additional options.
Customer Responsibilities & Installation
- Unloading: The customer is responsible for unloading the delivery truck. A forklift is required for unloading the crate; a forklift with 60" fork length is recommended.
- Construction and installation: The customer is responsible for booth assembly and installation, including electrical work. Installation instructions are provided, and M1M's in-house design team is available to answer installation questions.
- Electrical installation: Electrical work should be performed by a licensed electrician familiar with applicable national and local electrical codes and regulations.
- Permits and fire protection: The customer is responsible for local permitting and required fire-suppression provisions, where applicable.
Important Installation & Compliance Information
Paint booth requirements depend on the coating materials, ventilation design, electrical configuration, fire protection, facility conditions, and applicable local codes. Before purchase and installation, confirm the complete system's requirements with qualified installation professionals and your local authority having jurisdiction. UL-listed components, where provided, do not independently establish compliance of the complete booth or its installation.
