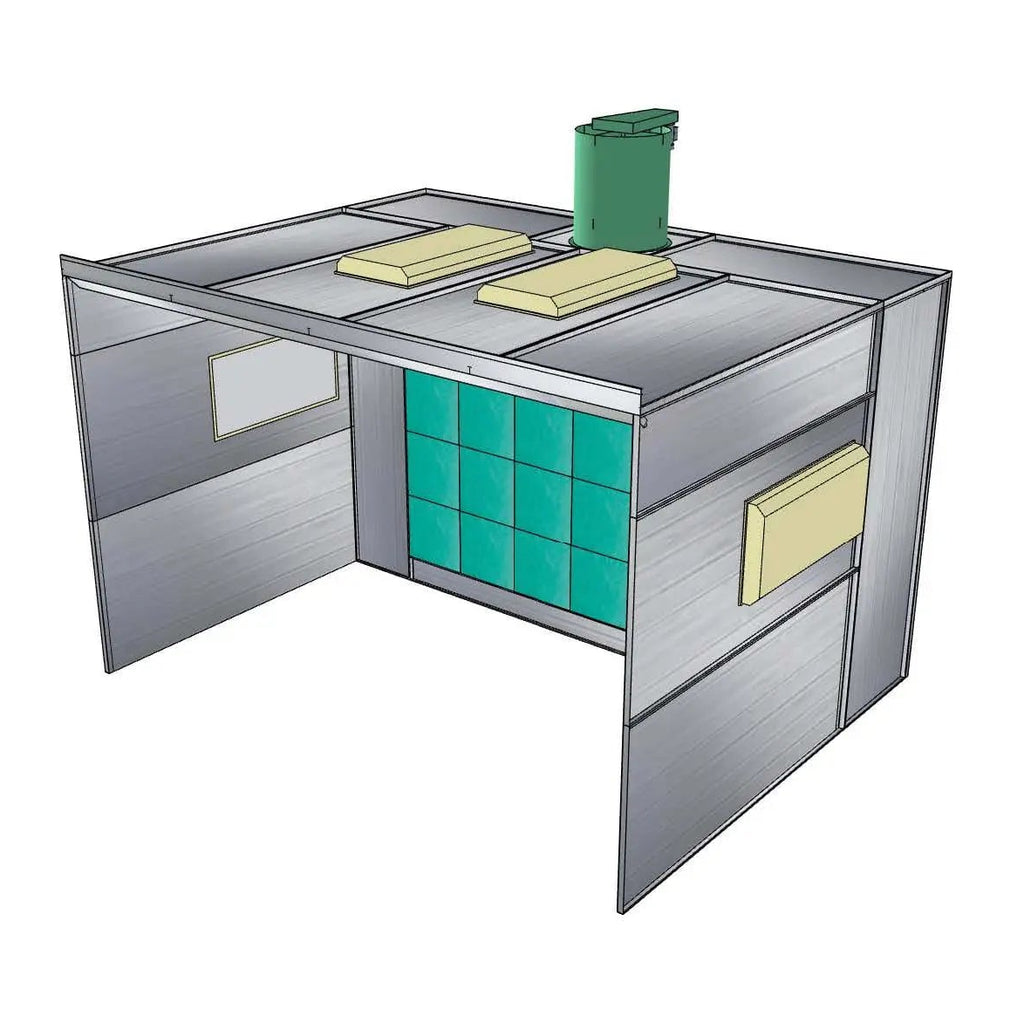

• 14' x 8' x 12' open face paint booth
1 3

PBOF14812 Open Face Paint Booth

PBOF14812 Open Face Paint Booth

$ 8,426.00 USD
$ 8,426.00 USD
Sale Sold out

Order Processing & Lead Times

Standard Equipment, Filters & Tools

Orders for standard equipment, filters, and tools typically have a fulfillment time of 7–12 business days.

Paint Booth Orders

Because every paint booth configuration is unique, our process includes several steps to ensure your booth is built to your specifications.

  1. Order Confirmation: After placing your order online or by phone, a member of our team will contact you directly to confirm your booth dimensions, electrical configuration, and other specifications.
  2. CAD Drawing Approval: Our team will provide CAD drawings for your review and approval before manufacturing begins.
  3. Manufacturing: Once all specifications have been confirmed and the CAD drawings are approved, your booth will move into production. Our average manufacturing lead time is 3–6 weeks, depending on current order volume. Lead times are estimates and may vary.
  4. Freight Coordination: Once your booth has been manufactured, a member of our team will contact you to confirm shipping details and coordinate freight arrangements for your order.

At M1M Equipment, we work closely with every customer throughout the process to help ensure your paint booth is built to your specifications and ready for delivery.

Shipping & Delivery

Paint booths and other heavy equipment require freight shipping, and these costs are incorporated into the shipping charges calculated at checkout.

For smaller items, such as paint shakers, tools, filters, and accessories, shipping costs may vary by product. Some items will include free shipping and that will be displayed at checkout. Any applicable shipping charges will be clearly displayed during checkout before you complete your purchase.

Warranty

View full details
M1M EQUIPMENT

PBOF14812 Open Face Paint Booth

Create a more controlled painting environment with the PBOF14812 Open Face Paint Booth. Featuring a spacious 14-foot-wide configuration, durable galvanized steel construction, integrated LED lighting, and a powerful exhaust system, this booth offers a practical, cost-effective solution for isolating paint operations and exhausting airborne contaminants.

14′ Wide Configuration G-90 Galvanized Steel 9,990 CFM Exhaust

Technical Specifications

Detailed specifications for the PBOF14812 open face paint booth.

Booth Specifications
Model Number PBOF14812
Inside Dimensions 14′ Wide × 8′ Tall × 10′ Long
Outside Dimensions 14′ Wide × 8′ Tall × 12′ Long
Construction 18 Gauge G-90 Galvanized Steel
Front Door Opening 8′ Tall × 12′ Wide
Lighting 4 LED Fixtures, 2′ × 4′, Four-Tube Style with Glass
Exhaust System 24″ Diameter Tubeaxial Fan
2 HP, 3-Phase Motor
Exhaust Capacity 9,990 CFM at 1/4″ Static Pressure
Filtration 20″ × 20″ Exhaust Filter Pads
Included Accessories Manometer/Draft Gauge, Hardware and Sealants
Certified Subcomponents Fan/Motor, Filters and LED Lights

Built Around Your Needs

✓ Spacious 14-Foot-Wide Configuration
Provides a wide working area for painting operations that benefit from an open face booth design.
✓ Durable Galvanized Steel Construction
Constructed from 18-gauge G-90 galvanized steel for a durable booth structure.
✓ High-Capacity Exhaust System
Equipped with a 24″ tubeaxial fan, 2 HP three-phase motor, and rated exhaust capacity of 9,990 CFM at 1/4″ static pressure.
✓ Integrated LED Lighting
Includes four 2′ × 4′ LED fixtures with glass to illuminate the work area.
✓ Standard and Custom Sizes Available
Need a different configuration? Merchant 1 Manufacturing offers custom booth sizing to help accommodate your facility and application. Contact our team to discuss your project requirements.

Compliance and Installation

Booth configuration, installation, ventilation, electrical connections and fire protection must be evaluated for the intended application and applicable local requirements. Confirm applicable OSHA and NFPA 33 requirements with qualified professionals before operation.

M1M EQUIPMENT

American Made. Industry Trusted. Built for the Job.

Merchant 1 Manufacturing delivers paint booth solutions for businesses across the country, with standard configurations and custom-built options designed around your needs.
