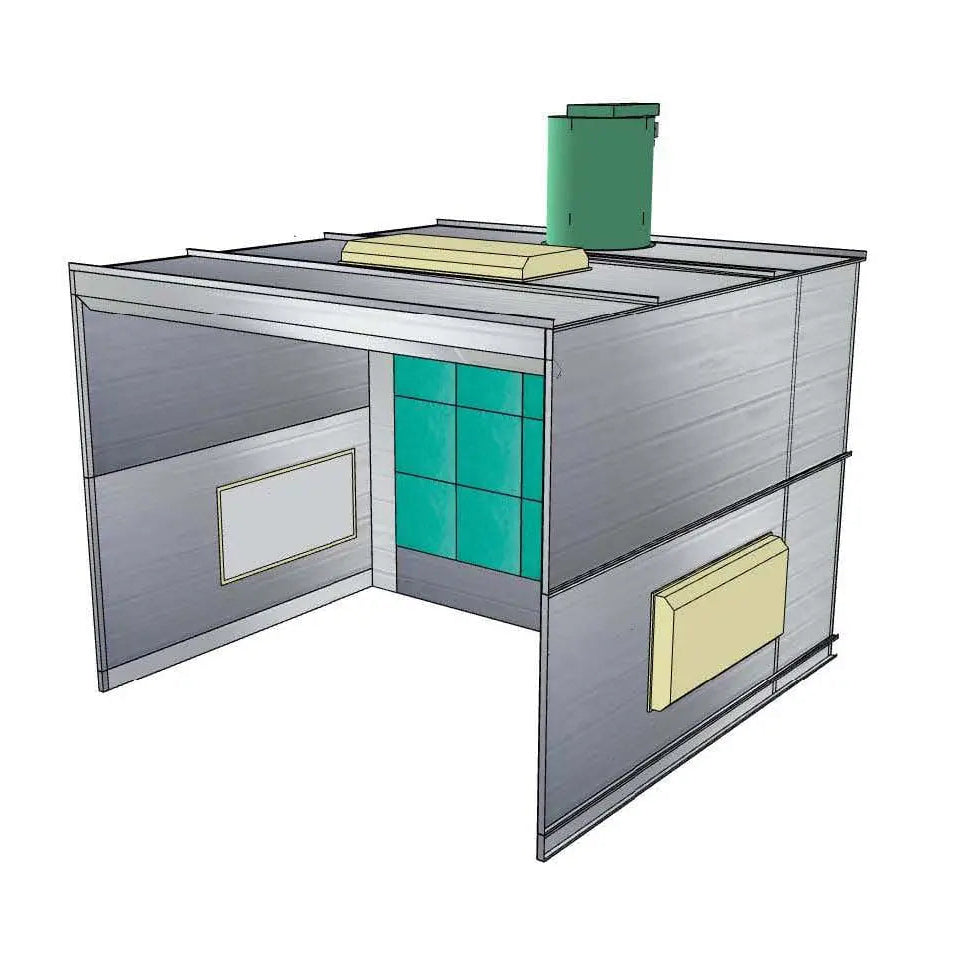

PBOF10810 Open Face Paint Booth
A practical, cost-effective solution for isolating paint operations and exhausting airborne contaminants. The PBOF10810 helps limit worksite contamination and exposure without the expense of a fully enclosed paint booth.
G-90 Galvanized Steel 3 HP Exhaust Fan LED Lighting
Technical Specifications
Detailed specifications for the PBOF8108 open face paint booth.
| Booth Specifications | |
|---|---|

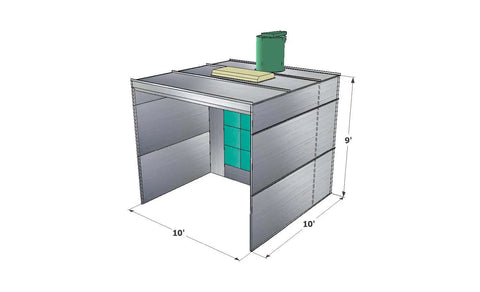

| Inside Dimensions | 10′ Wide × 8′ Tall × 7′8″ Long |
| Outside Dimensions | 10′ Wide × 8′ Tall × 10′ Long |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 8′ Tall × 8′ Wide |
| Lighting | 4 LED Fixtures, 2′ × 4′, Four-Tube Style Bulbs not included. |
| Exhaust System | 24″ Diameter Tubeaxial Fan 3 HP, 3-Phase Motor |
| Exhaust Capacity | 9,332 CFM at 1/4″ Static Pressure |
| Filtration | 20″ × 20″ Exhaust Filter Pads |
| Included Accessories | Manometer/Draft Gauge, Hardware and Sealants |
| Certified Subcomponents | Fan/Motor, Filters and LED Lights |
Built Around Your Needs
✓ Practical Paint Operation Containment
Helps isolate painting operations and exhaust airborne contaminants from the work area.
✓ Durable Galvanized Steel Construction
Constructed from 18-gauge G-90 galvanized steel.

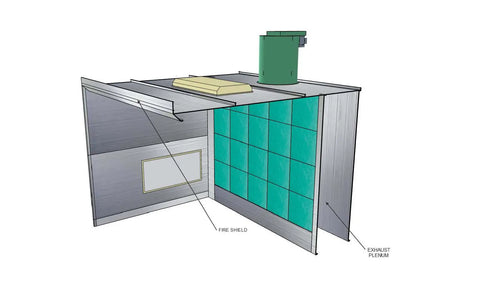

✓ Exhaust and Filtration System
Equipped with a 3 HP, 3-phase exhaust fan and 20″ × 20″ exhaust filter pads.
✓ Standard and Custom Sizes Available
Custom booth dimensions are available to help accommodate your facility and application. Contact our team to discuss your requirements.
Compliance and Installation
Booth configuration, installation, ventilation, electrical connections and fire protection must be evaluated for the intended application and applicable local requirements. Confirm applicable OSHA and NFPA 33 requirements with qualified professionals before operation.
