Filter Wall / Exhaust Wall - FW1093

Filter Wall / Exhaust Wall - FW1093

Regular price $ 6,405.00 USD
Regular price Sale price $ 6,405.00 USD
Sale Sold out

Order Processing & Lead Times

Standard Equipment, Filters & Tools

Orders for standard equipment, filters, and tools typically have a fulfillment time of 7–12 business days.

Paint Booth Orders

Because every paint booth configuration is unique, our process includes several steps to ensure your booth is built to your specifications.

  1. Order Confirmation: After placing your order online or by phone, a member of our team will contact you directly to confirm your booth dimensions, electrical configuration, and other specifications.
  2. CAD Drawing Approval: Our team will provide CAD drawings for your review and approval before manufacturing begins.
  3. Manufacturing: Once all specifications have been confirmed and the CAD drawings are approved, your booth will move into production. Our average manufacturing lead time is 3–6 weeks, depending on current order volume. Lead times are estimates and may vary.
  4. Freight Coordination: Once your booth has been manufactured, a member of our team will contact you to confirm shipping details and coordinate freight arrangements for your order.

At M1M Equipment, we work closely with every customer throughout the process to help ensure your paint booth is built to your specifications and ready for delivery.

Shipping & Delivery

Paint booths and other heavy equipment require freight shipping, and these costs are incorporated into the shipping charges calculated at checkout.

For smaller items, such as paint shakers, tools, filters, and accessories, shipping costs may vary by product. Some items will include free shipping and that will be displayed at checkout. Any applicable shipping charges will be clearly displayed during checkout before you complete your purchase.

Warranty

View full details
M1M EQUIPMENT

FW1093 Exhaust Filter Wall

Designed for demanding paint finishing environments, the FW1093 Exhaust Filter Wall combines durable galvanized steel construction, intake and exhaust filtration, and a high-capacity mechanical exhaust system. With a 10-foot-wide configuration and a 5 HP exhaust motor rated at 19,500 CFM, this unit helps manage airflow and capture airborne particles in compatible finishing applications.

10′ Wide Configuration 5 HP Exhaust Motor 19,500 CFM Exhaust

Technical Specifications

Detailed specifications for the FW1093 exhaust filter wall.

Product Specifications
Model Number FW1093
Inside Dimensions 10′ Wide × 9′ Tall × 38½″ Deep

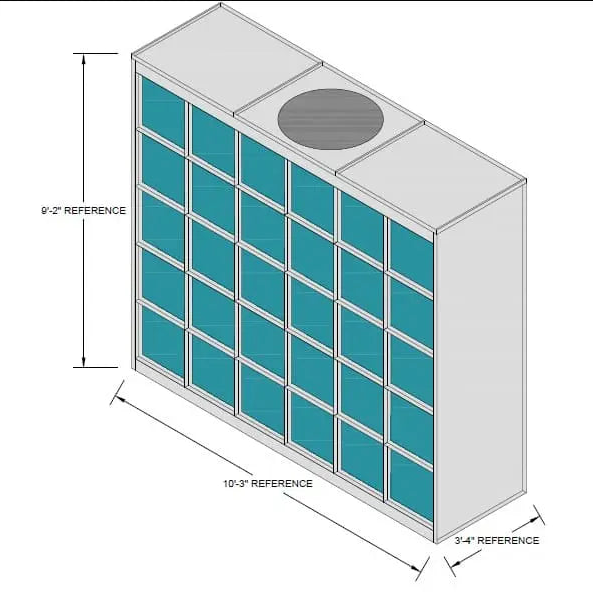

Outside Dimensions 10′3″ Wide × 9′2″ Tall × 3′4″ Deep
Construction 18 Gauge G-90 Galvanized Steel
Exhaust Fan 34″ Diameter Fan
Motor 5 HP, 3-Phase Motor
Exhaust Capacity 19,500 CFM at ¼″ Static Pressure
Weather Cover Weather cover specified for roof-mounted fan installations when the explosion-proof option is not selected.
Filtration 20″ × 20″ Intake and Exhaust Filter Pads
Included Accessories Hardware and Sealants

Designed for Finishing Applications

✓ Wide, Tall Filter Wall Design
The 10′ wide × 9′ tall configuration accommodates compatible finishing setups that require a larger filtration wall.
✓ Durable Galvanized Steel Construction
Built from 18-gauge G-90 galvanized steel for a durable housing designed for finishing environments.
✓ High-Capacity Exhaust Performance
Features a 34″ fan and 5 HP, three-phase motor, rated at 19,500 CFM at ¼″ static pressure.
✓ Intake and Exhaust Filtration
Uses 20″ × 20″ filter pads at both the intake and exhaust to help capture airborne particles in compatible applications.
✓ Roof-Mounting Weather Protection
The supplied specifications call for a weather cover on roof-mounted fan installations when the explosion-proof option is not selected. Confirm the required configuration for your application before ordering.

Installation and Safety

Verify the fan mounting location, weather protection, electrical supply, exhaust discharge, and required airflow before installation. Select the appropriate motor and fan configuration for the intended environment and applicable codes. An explosion-proof motor alone does not establish that the complete assembly is suitable for every hazardous location. Consult qualified installation and safety professionals before operation.
