Filter Wall / Exhaust Box - FW883
FW883 Paint Booth Exhaust Filter Wall
Designed for professional paint finishing environments, the FW883 Exhaust Filter Wall combines durable galvanized steel construction, intake and exhaust filtration, and a powerful mechanical exhaust system. With an 8-foot-wide configuration and a 3 HP exhaust motor, this unit helps manage airflow and capture airborne paint particles in compatible finishing applications.
Technical Specifications
Detailed specifications for the FW883 paint booth exhaust filter wall.
| Product Specifications | |
|---|---|
| Model Number | FW883 |
| Inside Dimensions | 8′ Wide × 8′ Tall × 34½″ Deep |

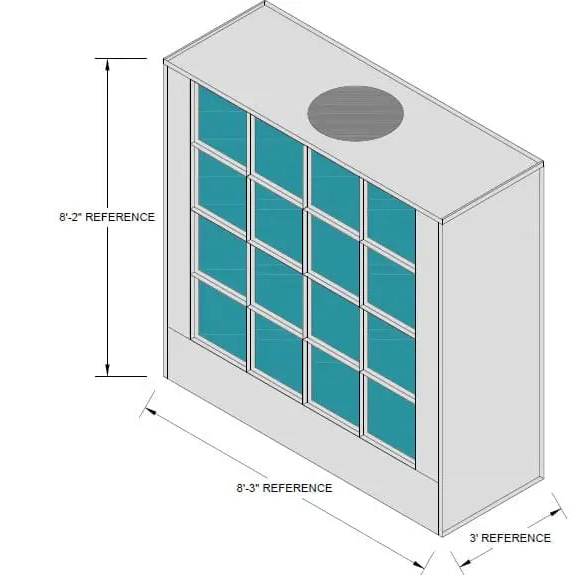

| Outside Dimensions | 8′3″ Wide × 8′2″ Tall × 3′ Deep |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Exhaust Fan | 24″ Diameter Fan |
| Motor | 3 HP, 3-Phase Motor |
| Exhaust Capacity | 10,400 CFM at ¼″ Static Pressure |
| Weather Cover | Weather cover specified for roof-mounted fan installations when the explosion-proof option is not selected. |
| Filtration | 20″ × 20″ Intake and Exhaust Filter Pads |
| Included Accessories | Hardware and Sealants |
Designed for Finishing Applications
Installation and Safety
Verify the fan mounting location, weather protection, electrical supply, exhaust discharge, and required airflow before installation. Select the appropriate motor and fan configuration for the intended environment and applicable codes. An explosion-proof motor alone does not establish that the complete assembly is suitable for every hazardous location. Consult qualified installation and safety professionals before operation.
