Filter Wall / Exhaust Box - FW683

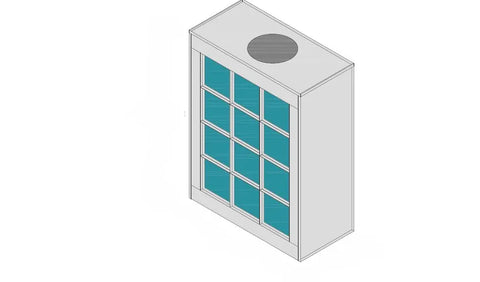

FW683 Exhaust Filter Wall
Designed for professional finishing environments, the FW683 Exhaust Filter Wall combines durable galvanized steel construction, intake and exhaust filtration, and a high-capacity exhaust system. With a 24-inch fan and a rated airflow of 10,400 CFM, this exhaust filter wall helps manage airflow and capture airborne particles in compatible paint finishing applications.
Technical Specifications
Detailed specifications for the FW683 exhaust filter wall.
| Product Specifications | |
|---|---|
| Model Number | FW683 |
| Inside Dimensions | 6′ Wide × 8′ Tall × 34½″ Deep |

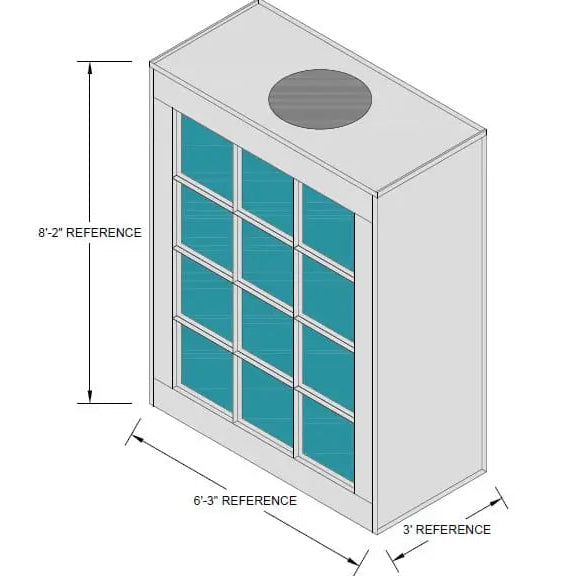

| Outside Dimensions | 6′3″ Wide × 8′2″ Tall × 3′ Deep |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Exhaust Fan | 24″ Diameter Fan |
| Motor | 2 HP, 3-Phase Motor |
| Exhaust Capacity | 10,400 CFM at ¼″ Static Pressure |
| Weather Cover | Weather cover specified for roof-mounted fan installations when the explosion-proof option is not selected. |
| Filtration | 20″ × 20″ Intake and Exhaust Filter Pads |
| Included Accessories | Hardware and Sealants |
Designed for Finishing Applications
Installation and Safety
Verify the fan mounting location, weather protection, electrical supply, exhaust discharge, and required airflow before installation. Select the appropriate motor and fan configuration for the intended environment and applicable codes. An explosion-proof motor alone does not establish that the complete assembly is suitable for every hazardous location. Consult qualified installation and safety professionals before operation.
