Filter Wall / Exhaust Box - FW2094

Filter Wall / Exhaust Box - FW2094

Regular price $ 9,450.00 USD
Regular price Sale price $ 9,450.00 USD
Sale Sold out

Order Processing & Lead Times

Standard Equipment, Filters & Tools

Orders for standard equipment, filters, and tools typically have a fulfillment time of 7–12 business days.

Paint Booth Orders

Because every paint booth configuration is unique, our process includes several steps to ensure your booth is built to your specifications.

  1. Order Confirmation: After placing your order online or by phone, a member of our team will contact you directly to confirm your booth dimensions, electrical configuration, and other specifications.
  2. CAD Drawing Approval: Our team will provide CAD drawings for your review and approval before manufacturing begins.
  3. Manufacturing: Once all specifications have been confirmed and the CAD drawings are approved, your booth will move into production. Our average manufacturing lead time is 3–6 weeks, depending on current order volume. Lead times are estimates and may vary.
  4. Freight Coordination: Once your booth has been manufactured, a member of our team will contact you to confirm shipping details and coordinate freight arrangements for your order.

At M1M Equipment, we work closely with every customer throughout the process to help ensure your paint booth is built to your specifications and ready for delivery.

Shipping & Delivery

Paint booths and other heavy equipment require freight shipping, and these costs are incorporated into the shipping charges calculated at checkout.

For smaller items, such as paint shakers, tools, filters, and accessories, shipping costs may vary by product. Some items will include free shipping and that will be displayed at checkout. Any applicable shipping charges will be clearly displayed during checkout before you complete your purchase.

Warranty

View full details

Merchant 1 Manufacturing

FW2094 Filter Wall / Exhaust Box

Heavy-duty construction and high-capacity exhaust airflow for demanding paint booth and finishing applications.

29,300 CFM Airflow Dual 36" Fans 20-Foot Wide

Designed for Professional Paint Finishing

The FW2094 Filter Wall / Exhaust Box from Merchant 1 Manufacturing is designed to support high-capacity exhaust airflow and overspray filtration in professional paint booth and finishing environments. Constructed from durable 18-gauge G-90 galvanized steel, this 20-foot-wide filter wall is designed for larger finishing applications that require a substantial exhaust system.

The FW2094 features two 36-inch exhaust fans powered by 5 HP, three-phase motors. The supplied specifications list a rated airflow of 29,300 CFM at 1/4-inch static pressure. The system accommodates 20" × 20" intake and exhaust filter pads to help capture airborne overspray as part of a properly designed ventilation and filtration system.

Product Specifications

Model Number FW2094
Product Type Filter Wall / Exhaust Box
Inside Dimensions 20' W × 9' H × 3' 4" D

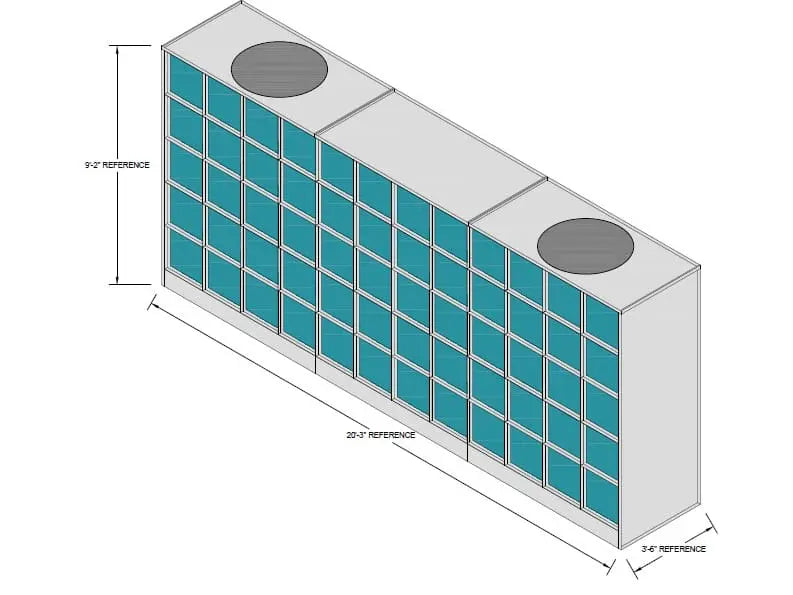

Outside Dimensions 20' 3" W × 9' 2" H × 3' 6" D
Construction 18-Gauge G-90 Galvanized Steel
Exhaust Fans Two 36-Inch Fans
Motors Two 5 HP, 3-Phase Motors
Rated Airflow 29,300 CFM at 1/4" Static Pressure, as listed in the supplied specifications
Filtration 20" × 20" Intake and Exhaust Filter Pads
Weather Cover / Fan Placement Roof placement with weather cover required when the explosion-proof option is not selected, per the supplied specifications
Hardware and Sealants Included

Key Features and Benefits

  • Wide-Format Filter Wall: A 20-foot-wide design for larger paint booth and finishing system configurations.
  • Dual-Fan Exhaust System: Two 36-inch fans with 5 HP, three-phase motors.
  • Durable Galvanized Steel: Constructed from 18-gauge G-90 galvanized steel for a robust enclosure.
  • Intake and Exhaust Filtration: Designed for 20" × 20" filter pads on both sides of the system.
  • Installation Components Included: Hardware and sealants are included.
  • Configuration-Specific Installation: Follow the fan placement and weather-cover requirements for the selected configuration.

Installation Considerations

Important: The supplied specifications state that when the explosion-proof option is not selected, the fan assembly must be placed on the roof with a weather cover. Confirm the selected configuration, fan placement, electrical requirements, and applicable fire and safety codes with qualified installation professionals before installation.

Actual exhaust performance depends on the complete system configuration, including ductwork, filter condition, and static pressure. Verify that the FW2094 is appropriately sized for your application before ordering.

American Made. Industry Trusted. Built for the Job.

Merchant 1 Manufacturing delivers durable paint booth components and finishing equipment backed by industry experience and dependable support.
