FW1493 Filter Wall / Exhaust Box
High-capacity exhaust performance, durable galvanized steel construction, and dependable filtration for demanding paint finishing applications.
Designed for Professional Paint Finishing
The FW1493 Filter Wall / Exhaust Box from Merchant 1 Manufacturing is designed to support high-volume exhaust airflow and overspray filtration in professional paint booth and finishing environments. Built from durable 18-gauge G-90 galvanized steel, this 14-foot-wide exhaust filter wall provides a robust solution for applications requiring substantial exhaust capacity.
The FW1493 features two 30-inch exhaust fans with 3 HP, three-phase motors, delivering a combined rated airflow of 26,000 CFM at 1/4-inch static pressure. The system uses 20" × 20" intake and exhaust filter pads to help capture airborne overspray as part of a properly designed ventilation and filtration system.
Product Specifications
| Model Number | FW1493 |
| Product Type | Filter Wall / Exhaust Box |

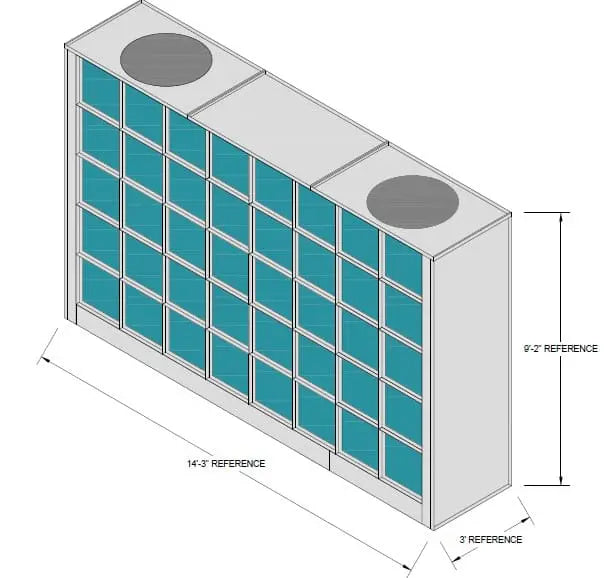

| Inside Dimensions | 14' W × 9' H × 34½" D |
| Outside Dimensions | 14' 3" W × 9' 2" H × 3' D |
| Construction | 18-Gauge G-90 Galvanized Steel |
| Exhaust Fans | Two 30-Inch Fans |
| Motors | Two 3 HP, 3-Phase Motors |
| Total Rated Airflow | 26,000 CFM at 1/4" Static Pressure |
| Filtration | 20" × 20" Intake and Exhaust Filter Pads |
| Weather Cover | Roof placement with weather cover required when the explosion-proof option is not selected, per the supplied specifications |
| Hardware and Sealants | Included |
Key Features and Benefits
- High-Volume Exhaust Capacity: Rated at 26,000 CFM at 1/4-inch static pressure to support demanding finishing applications.
- Dual-Fan Configuration: Two 30-inch exhaust fans with individual 3 HP, three-phase motors provide the specified combined airflow capacity.
- Durable Steel Construction: Manufactured from 18-gauge G-90 galvanized steel.
- Intake and Exhaust Filtration: Designed to use 20" × 20" filter pads on both sides of the system.
- Installation Components Included: Hardware and sealants are included.
- Configuration-Specific Installation: Follow the specified fan placement and weather-cover requirements for the selected option.
Installation Considerations
Important: The supplied specifications state that when the explosion-proof option is not selected, the fans must be placed on the roof with weather covers. Confirm the selected configuration, fan placement, electrical requirements, and applicable fire and safety codes with qualified installation professionals before installation.
Actual exhaust performance depends on the complete system configuration, including ductwork, filter condition, and static pressure. Confirm that the FW1493 is appropriately sized for your application before ordering.
American Made. Industry Trusted. Built for the Job.
Merchant 1 Manufacturing delivers durable paint booth components and finishing equipment backed by industry experience and dependable support.
