Filter Wall / Exhaust Box - FW1273

Filter Wall / Exhaust Box - FW1273

Regular price $ 5,933.00 USD
Regular price Sale price $ 5,933.00 USD
Sale Sold out

Order Processing & Lead Times

Standard Equipment, Filters & Tools

Orders for standard equipment, filters, and tools typically have a fulfillment time of 7–12 business days.

Paint Booth Orders

Because every paint booth configuration is unique, our process includes several steps to ensure your booth is built to your specifications.

  1. Order Confirmation: After placing your order online or by phone, a member of our team will contact you directly to confirm your booth dimensions, electrical configuration, and other specifications.
  2. CAD Drawing Approval: Our team will provide CAD drawings for your review and approval before manufacturing begins.
  3. Manufacturing: Once all specifications have been confirmed and the CAD drawings are approved, your booth will move into production. Our average manufacturing lead time is 3–6 weeks, depending on current order volume. Lead times are estimates and may vary.
  4. Freight Coordination: Once your booth has been manufactured, a member of our team will contact you to confirm shipping details and coordinate freight arrangements for your order.

At M1M Equipment, we work closely with every customer throughout the process to help ensure your paint booth is built to your specifications and ready for delivery.

Shipping & Delivery

Paint booths and other heavy equipment require freight shipping, and these costs are incorporated into the shipping charges calculated at checkout.

For smaller items, such as paint shakers, tools, filters, and accessories, shipping costs may vary by product. Some items will include free shipping and that will be displayed at checkout. Any applicable shipping charges will be clearly displayed during checkout before you complete your purchase.

Warranty

View full details

Merchant 1 Manufacturing

FW1273 Filter Wall / Exhaust Box

High-capacity exhaust performance, durable galvanized steel construction, and reliable filtration for professional paint finishing environments.

15,600 CFM Airflow 5 HP Motor 12-Foot Width

Built for Professional Paint Finishing

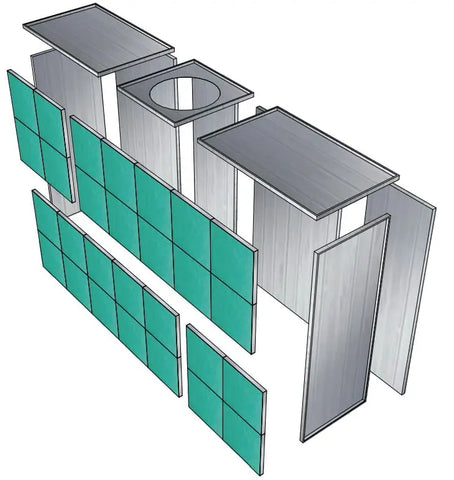

The FW1273 Filter Wall / Exhaust Box from Merchant 1 Manufacturing is designed to support effective exhaust airflow and paint overspray filtration in professional finishing applications. Constructed from durable 18-gauge G-90 galvanized steel, this 12-foot-wide exhaust filter wall provides a sturdy solution for paint booth and finishing system configurations.

Equipped with a 30-inch exhaust fan powered by a 5 HP, three-phase motor, the FW1273 delivers a rated airflow capacity of 15,600 CFM at 1/4-inch static pressure. Intake and exhaust filter pads help capture airborne overspray and support the exhaust filtration process.

Product Specifications

Model Number FW1273
Product Type Filter Wall / Exhaust Box
Inside Dimensions 12' W × 7' H × 34½" D

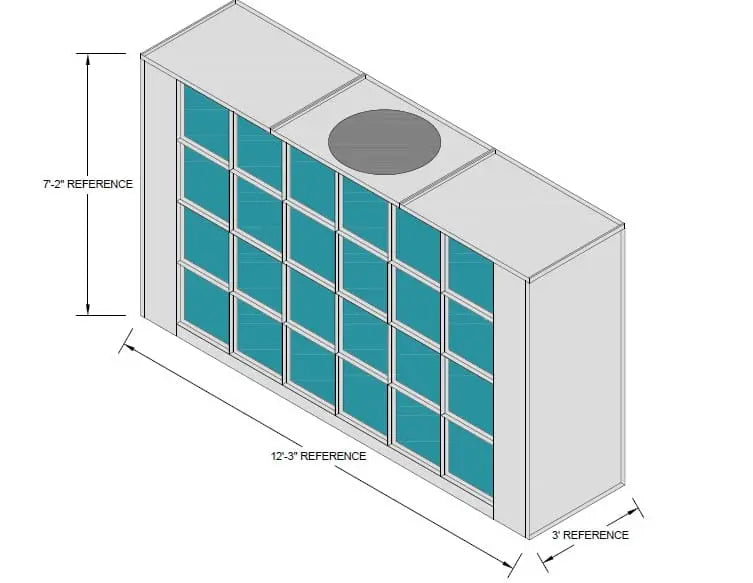

Outside Dimensions 12' 3" W × 7' 2" H × 3' D
Construction 18-Gauge G-90 Galvanized Steel
Exhaust Fan 30-Inch Fan
Motor 5 HP, 3-Phase
Airflow Capacity 15,600 CFM at 1/4" Static Pressure
Filtration 20" × 20" Intake and Exhaust Filter Pads
Weather Cover Specified with exhaust system; review installation requirements below
Hardware and Sealants Included

Key Features and Benefits

  • High-Capacity Exhaust: Rated for 15,600 CFM at 1/4-inch static pressure to support demanding paint finishing applications.
  • Durable Construction: Built from 18-gauge G-90 galvanized steel for long-lasting service in professional environments.
  • Powerful Exhaust System: Features a 30-inch fan paired with a 5 HP, three-phase motor.
  • Intake and Exhaust Filtration: Designed for 20" × 20" filter pads on both the intake and exhaust sides.
  • Installation Components Included: Hardware and sealants are included to assist with assembly and installation.
  • Weather Cover Specified: Follow the applicable fan placement and weather-cover requirements for the selected configuration.

Installation Considerations

Important: If the explosion-proof option is not selected, the fan must be installed on the roof with the specified weather cover, as indicated in the product specifications. Confirm fan placement, electrical requirements, ventilation design, and applicable fire and safety codes with qualified installation professionals before installation.

Proper exhaust performance depends on the complete system configuration, including ductwork, filter condition, and static pressure. Verify that the FW1273 is appropriately sized for your application before ordering.
