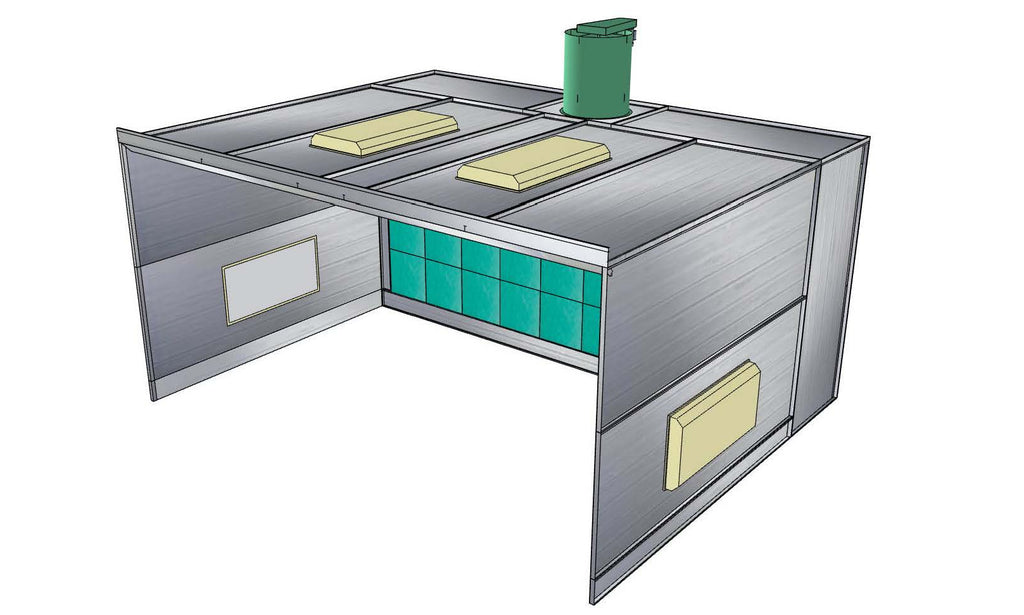

PBOF16810 Open Face Paint Booth
PBOF16810 Open Face Paint Booth
Designed for larger painting applications, the PBOF16810 Open Face Paint Booth provides a spacious 16-foot-wide working area, durable galvanized steel construction, integrated LED lighting, and a mechanical exhaust system. This open face configuration offers a practical, cost-effective solution for isolating paint operations and exhausting airborne contaminants without the expense of a fully enclosed paint booth.
Technical Specifications
Detailed specifications for the PBOF16810 open face paint booth.
| Booth Specifications | |
|---|---|
| Model Number | PBOF16810 |
| Inside Dimensions | 16′ Wide × 8′ Tall × 7′ Long |
| Outside Dimensions | 16′ Wide × 8′ Tall × 10′ Long |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 8′ Tall × 16′ Wide |
| Lighting | 4 LED Fixtures, 2′ × 4′, Four-Tube Style with Glass |
| Exhaust System | 24″ Diameter Tubeaxial Fan 2 HP, 3-Phase Motor |
| Exhaust Capacity | 9,990 CFM at 1/2″ Static Pressure |
| Filtration | 20″ × 20″ Exhaust Filter Pads |
| Included Accessories | Manometer/Draft Gauge, Hardware and Sealants |
| Certified Subcomponents | Fan/Motor, Filters and LED Lights |
Built Around Your Needs
Compliance and Installation
Booth configuration, installation, ventilation, electrical connections and fire protection must be evaluated for the intended application and applicable local requirements. Confirm applicable OSHA and NFPA 33 requirements with qualified professionals before operation.
American Made. Industry Trusted. Built for the Job.
Merchant 1 Manufacturing delivers paint booth solutions for businesses across the country, with standard configurations and custom-built options designed around your needs.
