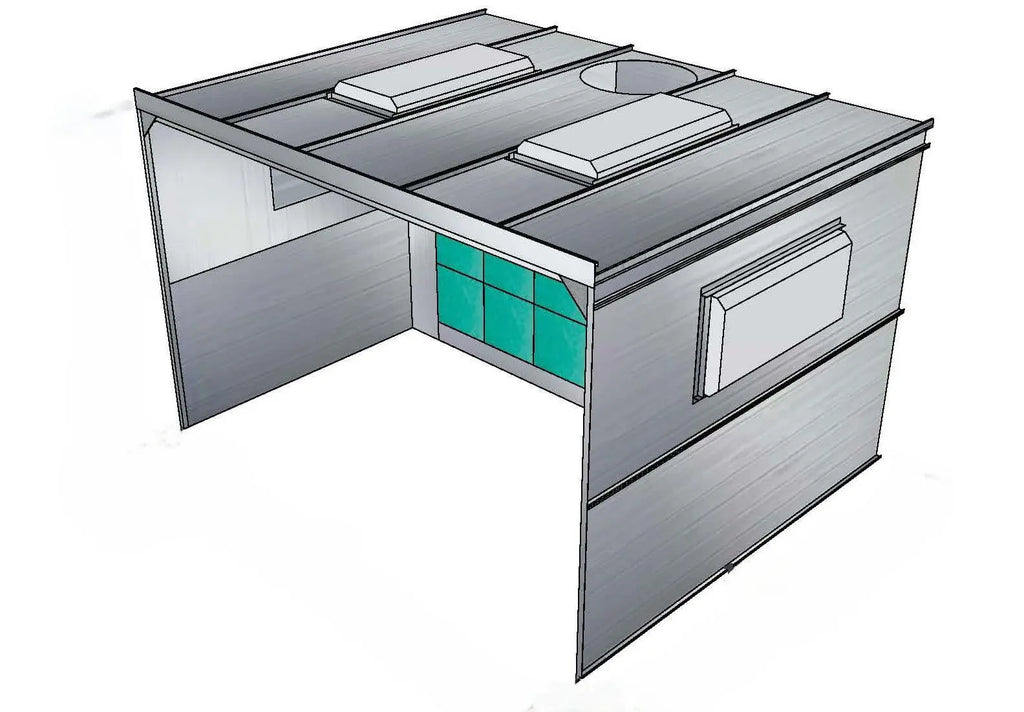

PBOF12810 Open Face Paint Booth
M1M EQUIPMENT
PBOF12810 Open Face Paint Booth
Create a more controlled painting environment with the PBOF12810 Open Face Paint Booth. Designed to help isolate painting operations and exhaust airborne contaminants, this open face configuration offers a practical, cost-effective alternative to a fully enclosed paint booth.
12′ Wide Configuration G-90 Galvanized Steel 2 HP Exhaust Fan
Technical Specifications
Detailed specifications for the PBOF12810 open face paint booth.
| Booth Specifications | |
|---|---|

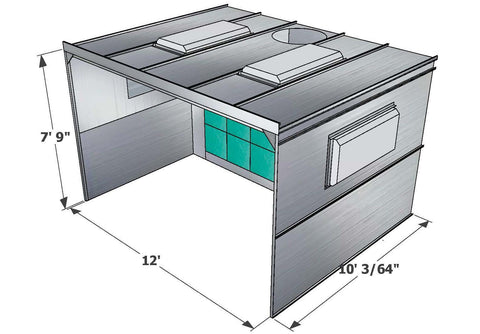

| Inside Dimensions | 12′ Wide × 8′ Tall × 7′ Long |
| Outside Dimensions | 12′ Wide × 8′ Tall × 10′ Long |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 8′ Tall × 12′ Wide |
| Lighting | 4 LED Fixtures, 2′ × 4′, Four-Tube Style with Glass |
| Exhaust System | 24″ Diameter Tubeaxial Fan 2 HP, 3-Phase Motor |
| Exhaust Capacity | 9,990 CFM at 1/4″ Static Pressure |
| Filtration | 20″ × 20″ Exhaust Filter Pads |
| Included Accessories | Manometer/Draft Gauge, Hardware and Sealants |
| Certified Subcomponents | Fan/Motor, Filters and LED Lights |
Built Around Your Needs
✓ Open Face Design
Helps isolate painting operations and exhaust airborne contaminants without requiring a fully enclosed booth.
✓ Durable Galvanized Steel Construction
Built with 18-gauge G-90 galvanized steel for a durable booth structure.
✓ Powerful Exhaust and Filtration
Features a 24″ tubeaxial exhaust fan, 2 HP three-phase motor, and 20″ × 20″ exhaust filter pads.
✓ Integrated LED Lighting
Includes four 2′ × 4′ LED fixtures with glass to illuminate the work area.
✓ Standard and Custom Sizes Available
Custom booth dimensions are available to help accommodate your facility and application. Contact our team to discuss your project requirements.
Compliance and Installation
Booth configuration, installation, ventilation, electrical connections and fire protection must be evaluated for the intended application and applicable local requirements. Confirm applicable OSHA and NFPA 33 requirements with qualified professionals before operation.
