Paint Mixing Rooms
PAINT MIXING ROOMS
The paint storage and mixing room provides a code-compliant ventilated room for paint storage and mixing – excellent addition to a paint and body shop configuration. Note: mixing rooms cannot be used for spraying operations - storage only.
- US-manufactured paint booths - built in Reidsville, NC
- Designed for extended service and production requirements.
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant
- Optimal / Code-compliant coating environment
- Standard and Custom size booths
Why…..Merchant 1 Manufacturing:
- US manufactured booths – standard and custom-sized paint / spray booths
-
On-line and up-front pricing and expedited ‘total acquisition’ quotes.
- Standard and customized booths for painting, powder-coating, storage, welding, blasting, etc.
- Highly configurable and adaptive manufacturing process
- A person that answers the phone, listens, and….works w/you toward a solution.
- Best pricing in the market -- no bells and whistles, unless you ask for it!
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical
- Local permitting and fire suppression (if req’d)
Mixing Room - Custom Sizes Available!

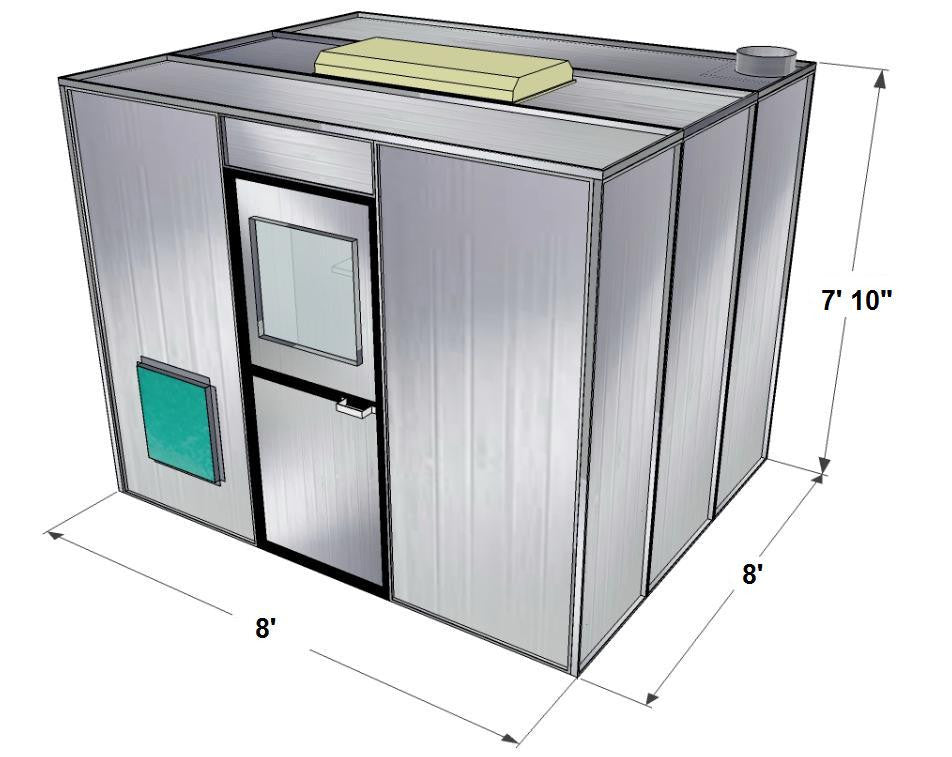

| MODEL NUMBER | PBMR888 |
| INSIDE DIMENSIONS | 7'8"Wide x 7'10"Tall x 8'Long |
| OUTSIDE DIMENSIONS | 8'Wide x 8'Tall x 8'Long |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING | 36"Wide x 84"Tall |
| LIGHTING | One 2' X 4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM | 12" Fan; 1/2HP-3PHASE MOTOR; 1930CFM @ 1/2 S.P. |
| FILTRATION | 20" X 20" EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
| MIXING ROOM OPTION | COST |
| SINGLE PHASE MOTOR | $300 |
| 12" DIA X 8' LONG EXHAUST DUCTWORK PCKG | $800-$1000 |
| POWDER COATED | $1600-$2000 |
| CONTROL PANEL FOR LIGHTS & FAN | $1000 |
| CONTROL PANEL w/VFD (Variable Freq. Drive) | $1600-$1800 |
| FIRE SUPPRESSION SYSTEM | Locally Procured |
| MIXING ROOM CUSTOM SIZES: | ||
| MODEL | PRICE | OUTSIDE DIMENSIONS |
| PBMR888 | $5,200.00 | 8' Wide X 8'Tall x 8'Long |
| PBMR1088 | $6,300.00 | 10'Wide X 8'Tall x 8'Long |
| PBMR1288 | $6,800.00 | 12'Wide X 8'Tall X 8'Long |
