Cross Flow Paint Booth with Bridge Exhaust PBCF14927H
Product Description:

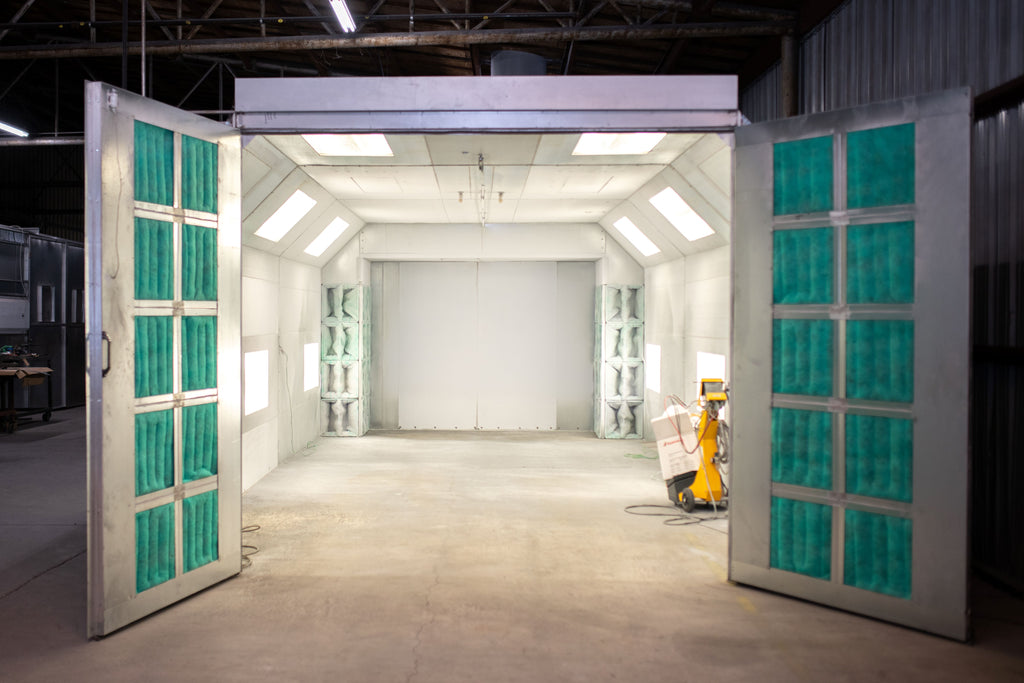

This (CF) booth is one step up from the Flat-Top; in that, it is 1’ wider, 1’ tall, 4’ deeper with horseshoe/bridge exhaust plenum. Thereby allowing more room for the painter/coater as well as providing a booth that can support a larger spectrum of vehicles due to the increased inside dimensions within a smaller footprint. American Made and Built in Reidsville, NC
NOTE: The bridge/horseshoe exhaust option optimizes the working area and/or allows drive thru capability.
- Engineered with 18 gauge galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant Optimal / Code-compliant coating environment
- Customization Available - Engineered to your needs – We can build any dimensions
CROSS FLOW PAINT BOOTH W/BRIDGE EXHAUST
| MODEL NUMBER | PBCF14927H |
| INSIDE DIMENSIONS | 14'WIDE X 9'TALL X 27'LONG |
| OUTSIDE DIMENSIONS | 15'WIDE X 9'4"TALL X 27'LONG |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR DIMENSIONS | 9'TALL X 10'WIDE |
| MAN ACCESS DOOR OPENING | 1 DOOR WITH WINDOW @ 7'TALL X 3'WIDE |
| LIGHTING | 10- 2'x4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM | 30" FAN; 3HP-3 PHASE MOTOR; 12600 CFM @.25"S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
Additional Options:
- Single Phase Motor
- 30″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White – All Panels
- Drive Through Doors
- Control Panel with UL listed components for lights and fan
- VFD Control Panel with UL listed components
Reach out to our sales team for a complete quote with additional options.
Paint Booth Quote
Customer Responsibilities:
- Offloading of delivery truck; Forklift required for unloading crate
- A forklift with 60” fork length is recommended for off loading equipment
- Construction / Installation to include electrical.
- Installation Instructions provided. Our in house design team is available to answer any questions during installation.
- All electrial installation for Paint Booth and AMU should be performed by a licensed electrician familiar with national, local electrical codes and regulations in your area. Failure to do so, could possibly result in costly damages and/or personal injury.
- Local permitting and fire suppression (if required)
