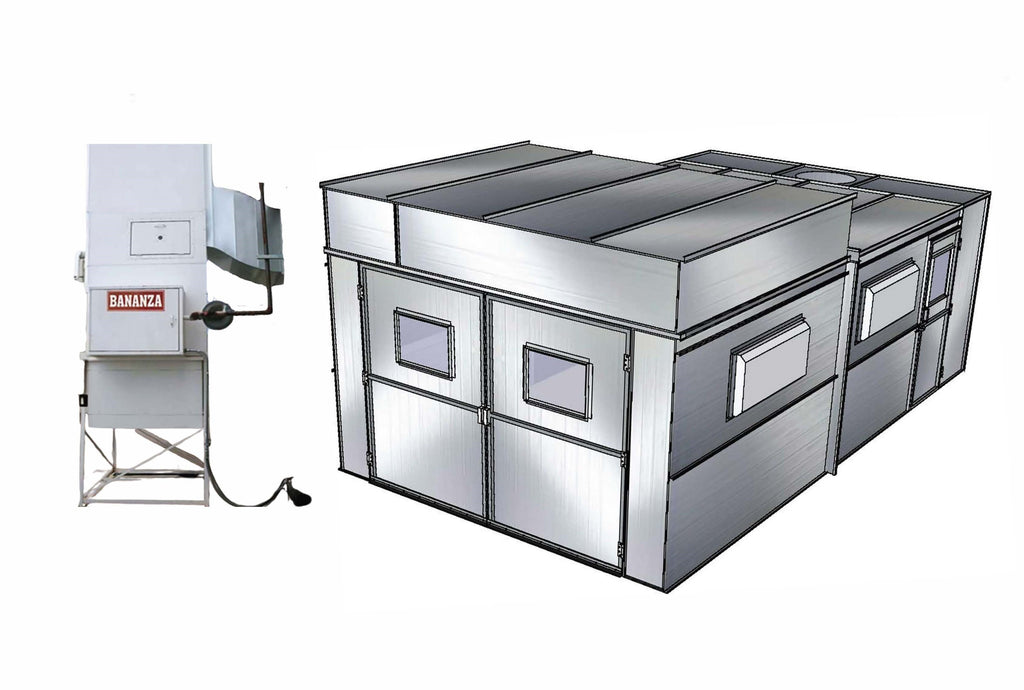

PBSD131023-EHB Economy Semi-Down Paint Booth – Heated
Affordable, dependable paint booth performance with integrated heated make-up air. The PBSD131023-EHB combines a space-efficient semi-down airflow design, durable galvanized steel construction, LED lighting, and a natural gas-fired air make-up unit in one practical finishing package.
Economy Semi-Down Paint Booth with Heated Air Make-Up
The PBSD131023-EHB is designed for businesses looking for an economical paint booth solution with integrated heating. Its semi-down airflow configuration draws filtered intake air through the ceiling and directs it toward the exhaust system, helping create a controlled environment for painting and finishing applications.
Constructed from 18-gauge G-90 galvanized steel, this booth includes five LED light fixtures with glass, an exhaust fan and motor, intake and exhaust filtration, a draft gauge, and a B650 heated air make-up unit. The included natural gas AMU supplies heated replacement air to support the booth's ventilation system and finishing process.
With a 13-foot-wide by 20-foot-long interior, the PBSD131023-EHB is suited to a range of automotive, motorcycle, and industrial finishing applications, subject to the dimensions and requirements of the items being coated.
Key Features & Benefits
- Heated air make-up included: B650 natural gas unit rated at 734,000 BTU/hr.
- Semi-down airflow design: Ceiling-mounted intake directs air toward the exhaust system.
- Durable construction: 18-gauge G-90 galvanized steel booth panels.
- Bright work area: Five 2' × 4' LED light fixtures with glass.
- Ventilation system included: 24-inch tubeaxial exhaust fan with a 3 HP, three-phase motor.
- Filtration included: 20" × 20" intake filters and exhaust filter pads.
- Installation support: Installation instructions and access to M1M's in-house design team for questions.
Product Specifications
| General Booth Information | |
|---|---|
| Model Number | PBSD131023-EHB |
| Booth Style | Economy Semi-Down Paint Booth with Box Exhaust and Heated Air Make-Up Unit |
| Inside Dimensions | 13' W × 7'10" H × 20' L |
| Outside Dimensions | 14' W × 10' H × 23' L |
| Construction | 18-gauge G-90 galvanized steel |
| Front Door Opening | 10' W × 8' H |
| Man Door | One door with window, 3' W × 7' H |
| Lighting | Five 2' × 4' LED fixtures with glass |
| Exhaust, Intake & Filtration | |
| Exhaust Fan | 24" diameter tubeaxial fan |
| Exhaust Motor | 3 HP, three-phase |
| Exhaust Airflow Rating | 9,332 CFM at 1/4" static pressure, as specified |
| Intake System | Ceiling-mounted semi-down airflow configuration |
| Intake Filters | 20" × 20" custom tacky intake panel filters |
| Exhaust Filters | 22-gram super-duty fiberglass exhaust filter media |
| Included Accessories | Manometer/draft gauge, hardware, and sealants |
| Heated Air Make-Up Unit | |
| AMU Model | B650 |
| AMU Airflow Rating | 8,000 CFM |
| AMU Motor | 5 HP |
| Fuel Type | Natural gas |
| Heating Capacity | 734,000 BTU/hr |
Available Add-On Options
Customize your paint booth package to better fit your facility, installation requirements, and finishing operation.
- Single-phase motor option
- 24" diameter × 8' long exhaust ductwork package
- Complete booth with bright white powder-coated finish
- Drive-through doors
Contact our sales team for a complete quote, additional options, and help determining the right configuration for your application.
Customer Responsibilities & Installation
- Unloading: The customer is responsible for unloading the delivery truck. A forklift is required for unloading the crate; a forklift with 60" fork length is recommended.
- Construction and installation: The customer is responsible for booth and AMU installation, including required electrical work. Installation instructions are provided, and M1M's in-house design team is available to answer installation questions.
- Electrical and gas connections: All electrical work should be performed by a licensed electrician familiar with applicable national and local codes. Natural gas piping and connections should be completed by qualified professionals in accordance with applicable requirements.
- Permits and fire protection: The customer is responsible for local permitting and required fire-suppression provisions, where applicable.
Important Installation & Compliance Information
Paint booth requirements depend on the coating materials, facility, ventilation design, electrical installation, fire protection, and applicable local codes. Before purchase and installation, confirm the complete system's requirements with qualified installation professionals and your local authority having jurisdiction. Certified individual components do not by themselves establish compliance of the complete booth or its installation.
Ready to Configure Your Paint Booth?
Talk with our team about pricing, available upgrades, installation requirements, and the right setup for your operation.
Request a Paint Booth QuoteAmerican Made. Industry Trusted. Built for the Job.
Proudly manufactured in Reidsville, North Carolina, Merchant 1 Manufacturing delivers paint booths and finishing equipment backed by industry experience and dependable support.
