Finishing/Parts Booth

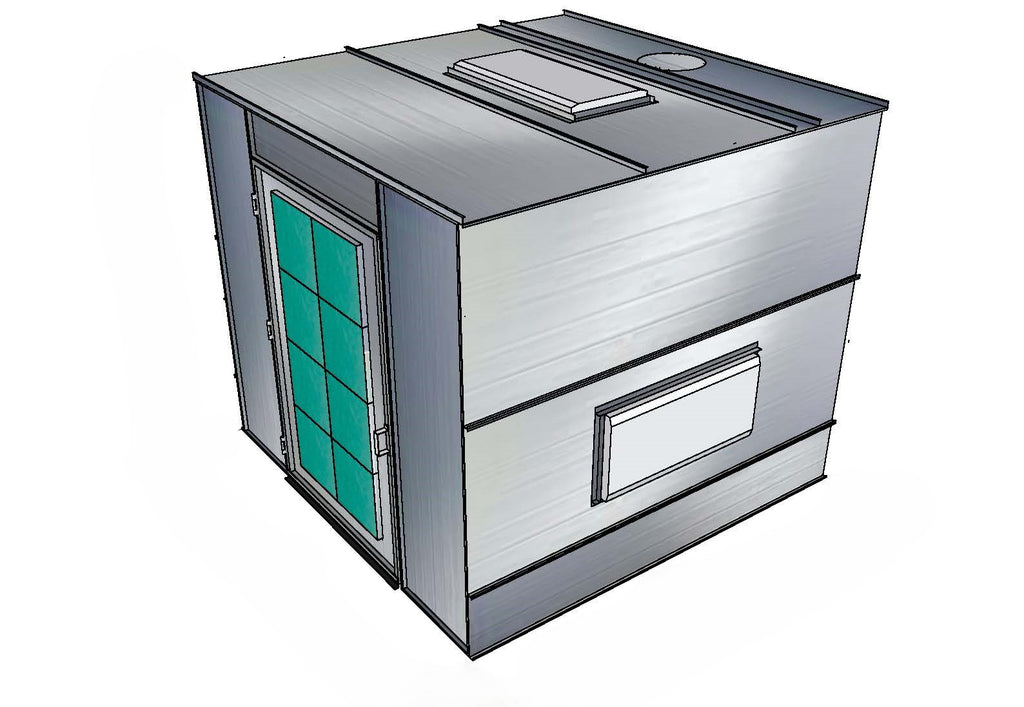

FINISHING PAINT BOOTH
The Finishing booth is the smallest enclosed paint booth we offer. It provides a code-compliant spray environment within the smallest ‘footprint’ possible - optimal solution for small parts coating.
- US-manufactured paint booths - built in Reidsville, NC
- Designed for extended service and production requirements.
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant
- Optimal / Code-compliant coating environment
- Standard and Custom size booths
- Multiple air flow types (or variants)
Why…..Merchant 1 Manufacturing:
- US manufactured booths – standard and custom-sized paint / spray booths
-
On-line and up-front pricing and expedited ‘total acquisition’ quotes.
- Standard and customized booths for painting, powder-coating, storage, welding, blasting, etc.
- Highly configurable and adaptive manufacturing process
- A person that answers the phone, listens, and….works w/you toward a solution.
- Best pricing in the market -- no bells and whistles, unless you ask for it!
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical.
- Local permitting and fire suppression (if req’d)
| MODEL NUMBER | PBFB10910 |
| INSIDE DIMENSIONS | 9'9"Wide x 8'8"Tall x 8'Deep |
| OUTSIDE DIMENSIONS | 10'Wide x 9 'Tall x 10'Long |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING DIMENSIONS | 5'Wide x 7'8"Tall |
| LIGHTING | Three 2' X 4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM | 18" Fan; 1-1/2HP-3PHASE MOTOR; 5300 CFM @ 1/2"S.P. |
| FILTRATION | 20" X 20" EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
| SINGLE PHASE MOTOR | |
| ADDITIONAL LIGHT FIXTURE - Includes Glass | |
| D/W PKG INCLUDES TWO 4' PIPES/FLANGES/BUTTERFLY CAP | |
| CONTROL PANEL FOR FAN/MOTOR/LIGHTS | $1000 |
| CONTROL PANEL w/VFD (Variable Frequency Drive) | $1550 |
| POWDER COATING | |
| FIRE SUPPRESSION SYSTEM | Locally Procured |
| MODEL | PRICE | |
| PBFB8810 | $8500 | 8'Wide X 8' Tall x 10'Deep |
| PBFB10910 | ||
| PBFB10813 | ||
| PBFB10916 |
