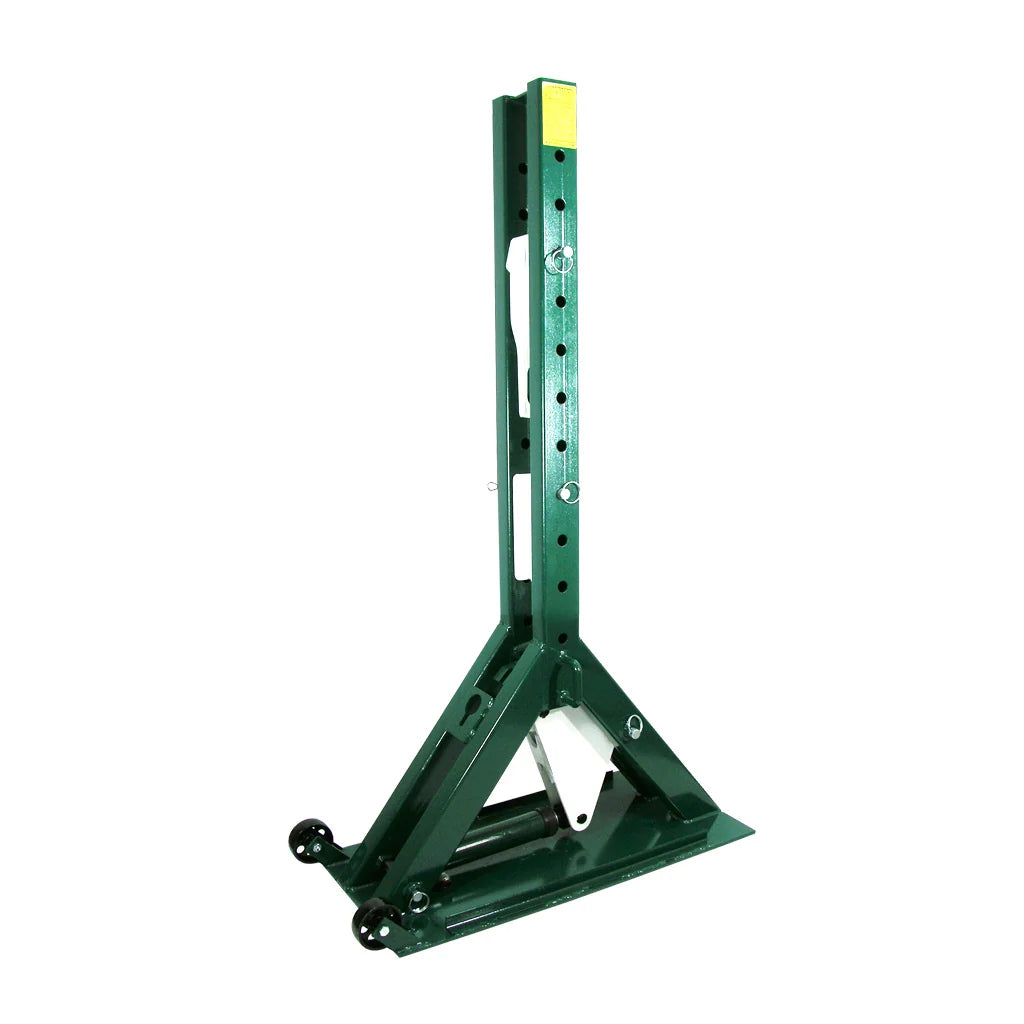

Auto Body Floor Pulling Post – Models 890 and 892
Auto Body Floor Pulling Post – Models 890 & 892
Add versatile pulling capability to your collision repair shop with the Model 890 and Model 892 Auto Body Floor Pulling Posts. Designed for professional auto body and frame straightening applications, these heavy-duty pulling posts provide multiple pulling positions while maintaining a compact footprint in the shop.
Built with all-steel construction and metal wheels, both models can be moved around the work area as needed. Choose between the compact Model 890 or the taller Model 892 depending on your shop's frame-pulling requirements.
Key Features
- Heavy-duty all-steel construction
- Metal wheels for easier movement around the shop
- Multiple pin positions for adjustable pulling height
- Hydraulic ram for controlled pulling applications
- Available in Model 890 and Model 892
- Compact alternative or addition to larger frame-straightening equipment
- Designed for professional auto body and collision repair shops
Your existing page confirms the steel construction, wheels, pin configurations, ram strokes and dimensions.
Product Details:
- Metal wheels for easy movement around the shop
- All steel construction
| ATTRIBUTE | Model: 890 | Model: 892 |
| POST HEIGHT | 55.5" | 68" |
| PIN LOCATION / SPACING | 2.25" | 3.35" |
| NUMBER OF PINS | 10 | 13 |
| RAM STROKE | 6" | 8" |
| BASE DIMENSIONS | 16" X 25" | 16" X 33" |
| METAL WHEELS | Yes | Yes |
| WEIGHT (lbs) | 195 | 212 |
Which Floor Pulling Post Should You Choose?
I'd add a short section underneath the table:
Model 890 – A more compact floor pulling post with a 55.5-inch post height, 10 pulling positions and 6-inch ram stroke. A good choice when shop space and portability are priorities.

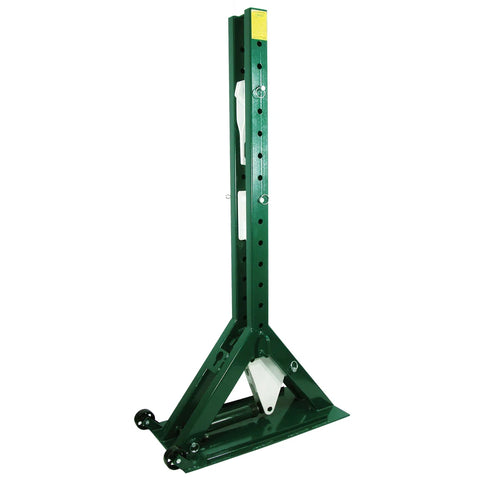

Model 892 – The larger option with a 68-inch post height, 13 pulling positions and 8-inch ram stroke, providing additional height and positioning options for frame and body repair.
Models 890 & 892 Floor Pulling Post Manual: Click Here
