FW1694 Filter Wall / Exhaust Box
High-capacity exhaust performance, durable galvanized steel construction, and dependable filtration for demanding paint finishing applications.
Designed for Professional Paint Finishing
The FW1694 Filter Wall / Exhaust Box from Merchant 1 Manufacturing is designed to support high-volume exhaust airflow and overspray filtration in professional paint booth and finishing environments. Constructed from durable 18-gauge G-90 galvanized steel, this 16-foot-wide exhaust filter wall is built for applications requiring substantial exhaust capacity.
Equipped with two 30-inch exhaust fans and 3 HP, three-phase motors, the FW1694 is rated for 29,300 CFM at 1/4-inch static pressure, according to the supplied specifications. The system accommodates 20" × 20" intake and exhaust filter pads to help capture airborne overspray as part of a properly designed ventilation and filtration system.
Product Specifications
| Model Number | FW1694 |
| Product Type | Filter Wall / Exhaust Box |
| Inside Dimensions | 16' W × 9' H × 3' 4" D |

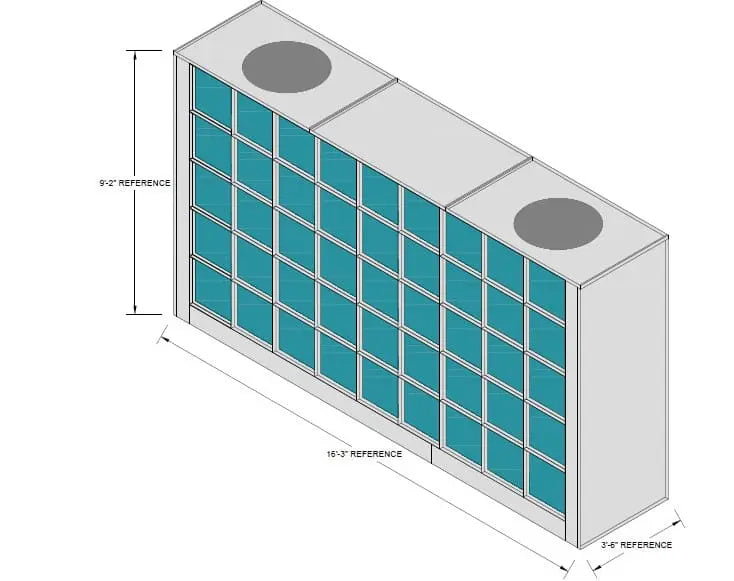

| Outside Dimensions | 16' 3" W × 9' 2" H × 3' 6" D |
| Construction | 18-Gauge G-90 Galvanized Steel |
| Exhaust Fans | Two 30-Inch Fans |
| Motors | Two 3 HP, 3-Phase Motors |
| Rated Airflow | 29,300 CFM at 1/4" Static Pressure |
| Filtration | 20" × 20" Intake and Exhaust Filter Pads |
| Weather Cover / Fan Placement | Roof placement with weather cover required when the explosion-proof option is not selected, per the supplied specifications |
| Hardware and Sealants | Included |
Key Features and Benefits
- High-Capacity Exhaust: Rated at 29,300 CFM at 1/4-inch static pressure for demanding paint finishing applications.
- Dual-Fan Design: Features two 30-inch exhaust fans powered by 3 HP, three-phase motors.
- Heavy-Duty Construction: Manufactured from 18-gauge G-90 galvanized steel.
- Intake and Exhaust Filtration: Designed for 20" × 20" filter pads on both sides of the system.
- Installation Components Included: Hardware and sealants are included.
- Configuration-Specific Installation: Follow the required fan placement and weather-cover instructions for the selected configuration.
Installation Considerations
Important: The supplied specifications state that when the explosion-proof option is not selected, the fans must be placed on the roof with weather covers. Confirm the selected configuration, fan placement, electrical requirements, and applicable fire and safety codes with qualified installation professionals before installation.
Actual exhaust performance depends on the complete system configuration, including ductwork, filter condition, and static pressure. Verify that the FW1694 is properly sized for your application before ordering.
