PBSD141129B Semi-Down Draft Paint Booth with Air Intake Box
Designed for professional automotive refinishing, the PBSD141129B combines semi-down airflow, a spacious 25'9" interior, and an integrated air intake box that can be configured for filtered air intake or connection to a compatible air makeup/heating system.
Semi-Down Airflow with Flexible Air Intake Options
The Merchant 1 Manufacturing PBSD141129B Semi-Down Draft Paint Booth is designed for automotive refinishing and professional coating applications where airflow configuration, workspace, and future equipment compatibility are important considerations.
Unlike a traditional crossflow booth that draws intake air through filters in the front doors, this semi-down design introduces air through the upper front ceiling area and directs it toward the rear exhaust system. This arrangement allows the booth to use an air intake box rather than relying on door-mounted intake filters.
The PBSD141129B includes an air intake box that can be configured with filtered intake air or a solid arrangement for connection to a compatible air makeup unit (AMU) or heating system. This gives shop owners flexibility when planning their initial installation or integrating additional equipment.
Built in Reidsville, North Carolina, using 18-gauge G-90 galvanized steel, the booth includes ten 2' × 4' LED fixtures with glass, a 30-inch tube axial exhaust fan, a 3 HP three-phase motor, and 20" × 20" intake and exhaust filter pads for the applicable configuration.
Key Features
- Integrated air intake box: Included with the booth and configurable for filtered air intake or a solid AMU connection arrangement.
- Semi-down airflow design: Air enters through the upper front section and moves toward the rear exhaust system.

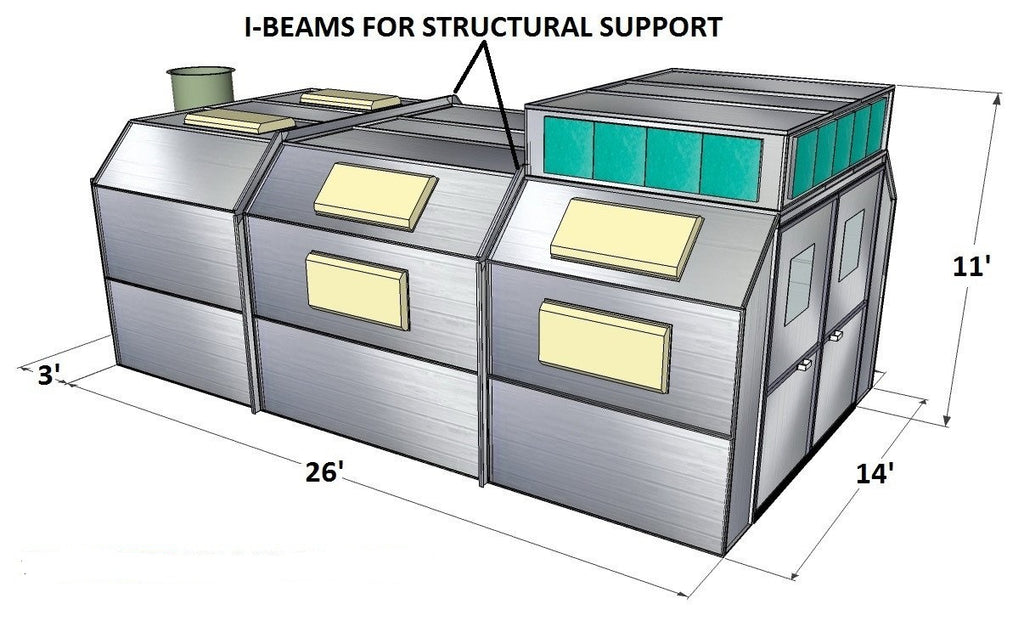

- Spacious working area: 14' wide × 9'4" high × 25'9" long interior.
- Galvanized steel construction: Manufactured using 18-gauge G-90 galvanized steel.
- LED booth lighting: Ten 2' × 4' LED fixtures with glass.
- Exhaust system: 30" tube axial fan with a 3 HP, three-phase motor, rated at 12,220 CFM at 1/4" static pressure.
- Convenient access: 10' wide × 9' high front door opening and a separate 3' wide × 7' high man door with a window.
- Included essentials: Manometer/draft gauge, hardware, sealants, and specified filtration media.
PBSD141129B Specifications
| Model | PBSD141129B |
| Booth Configuration | Semi-down draft with air intake box |
| Inside Dimensions | 14' W × 9'4" H × 25'9" L |
| Outside Dimensions | 15' W × 11'3" H × 29' L |
| Construction | 18-gauge G-90 galvanized steel |
| Front Door Opening | 10' W × 9' H |
| Man Door | One door with window; 3' W × 7' H |
| Lighting | Ten 2' × 4' LED fixtures with glass |
| Exhaust Fan | 30" diameter tube axial fan |
| Motor | 3 HP, three-phase |
| Exhaust Capacity | 12,220 CFM at 1/4" static pressure |
| Filtration | 20" × 20" intake and exhaust filter pads |
| Included Accessories | Manometer/draft gauge, hardware, and sealants |
Replacement Filter Options
Keep your booth's filtration system maintained with compatible replacement filter media.
Available Options & Upgrades
The following options are available at additional cost and are not included in the standard booth price. Contact our sales team for pricing and compatibility with your selected configuration.
- Single-phase motor option: Available for qualifying electrical configurations.
- Exhaust ductwork package: 30" diameter × 8' long ductwork package.
- Bright white powder-coated panels: Powder-coated finish for all booth panels.
- Drive-through doors: Available for compatible booth configurations.
- High-end control panel: Control panel with UL-listed components for booth lights and fan.
- High-end VFD control panel: Variable frequency drive control panel with UL-listed components.
Air intake box configuration: The included intake box can be configured for filtered intake air or a solid connection arrangement for a compatible AMU/heating system. An AMU, heater, and associated ductwork are not identified as included in the standard specifications. Confirm the selected intake configuration and any additional equipment before ordering.
Configure Your Semi-Down Paint Booth
Need help selecting a filtered intake box, planning for heated makeup air, or customizing your booth? Contact our team for a complete quote and configuration guidance.
Request a Paint Booth QuoteCustomer Responsibilities & Installation
- Unloading: The customer is responsible for offloading the delivery truck. A forklift is required to unload the crate; a forklift with 60" fork length is recommended.
- Construction and installation: The customer is responsible for booth construction and installation, including electrical work. Installation instructions are provided, and our in-house design team is available to answer installation questions.
- Electrical installation: All electrical work for the paint booth and any associated air makeup unit (AMU) must be performed by a licensed electrician familiar with applicable national, state, and local electrical codes.
- Permits and fire suppression: The customer is responsible for determining and obtaining required local permits and arranging fire suppression where required by applicable codes and the local authority having jurisdiction.
Safety, codes, and installation: Paint booth installations must be evaluated for the intended coating materials, ventilation and airflow requirements, electrical configuration, fire protection, and applicable local codes. OSHA and NFPA 33 requirements may apply depending on the application and installation. Confirm the complete system design and installation with qualified professionals and the local authority having jurisdiction.
Certified components: Individual components may carry their own certifications or listings. Component certifications alone do not establish that the complete booth installation complies with every applicable code or standard.
