Cross Flow Paint Booth PBCF14929B

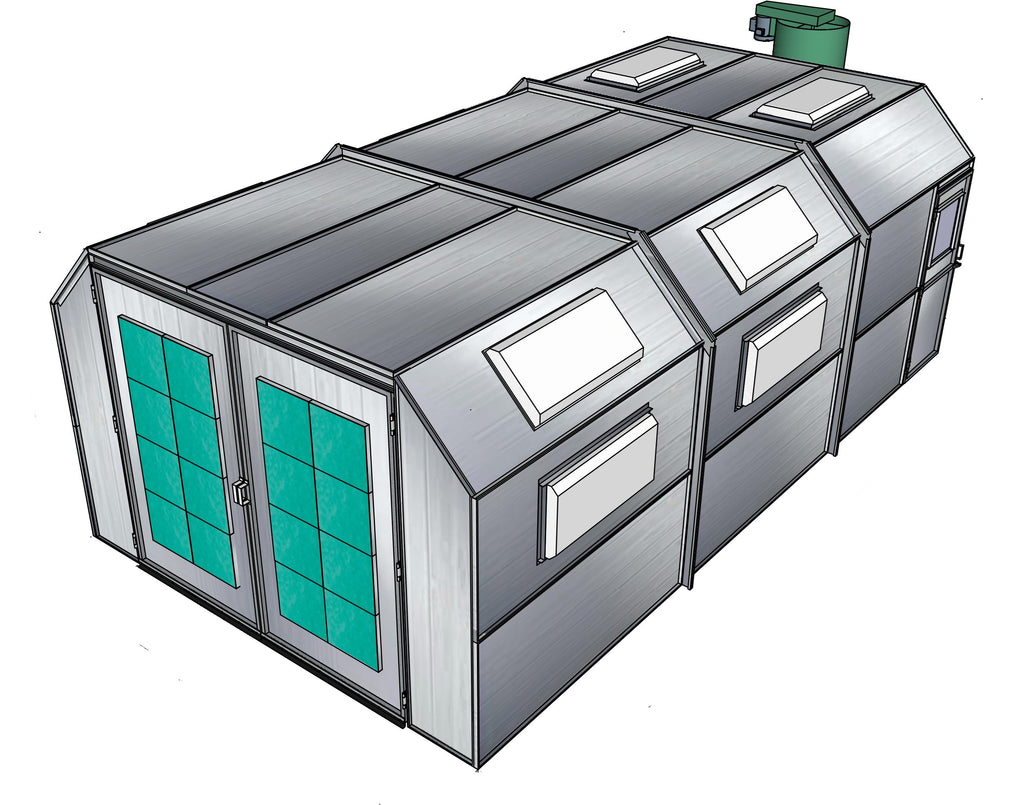

CROSS-FLOW PAINT BOOTH w/BOX EXHAUST
This Cross Flow Booth is one step up from the Flat-Top; in that, it is 1’ wider, 1’ tall, 3’ deeper with a box exhaust plenum. This booth allows for allows for more room for the painter/coater as well as providing a booth that can support a larger spectrum of vehicles due to the increased inside dimensions.
- US-manufactured paint booths - built in Reidsville, NC
- Designed for extended service and production requirements.
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant
- Optimal / Code-compliant coating environment
- Standard and Custom size booths
- Multiple air flow types (or variants)
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical.
- Local permitting and fire suppression (if req’d)
| MODEL NUMBER | PBCF14929B (Shown Above) |
| INSIDE DIMENSIONS | 14' WIDE X 9'4" TALL X 26' LONG |
| OUTSIDE DIMENSIONS | 14'3" WIDE X 9'6"TALL X 29'LONG |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING DIMENSIONS | 9'TALL X 10'WIDE |
| MAN ACCESS DOOR OPENING | 1 DOOR WITH WINDOW @ 7'TALL X 3'WIDE |
| LIGHTING | 10 @ 4 TUBE, 2' X 4' LED FIXTURES WITH GLASS |
| EXHAUST SYSTEM | 30" FAN; 3HP-3PHASE MOTOR; 12600CFM @ .25"S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
| SINGLE PHASE MOTOR | |
| 30" DIA X 8' LONG EXHAUST DUCTWORK PACKAGE | |
| POWDER COATED BRIGHT WHILE COMPLETE BOOTH | |
| CONTROL PANEL FOR LIGHTS & FAN | |
| CONTROL PANEL w/VFD (Variable Freq. Drive) | $1550 |
| FIRE SUPPRESSION SYSTEM - WE PROVIDE INSTALLER CONTACTS FOR YOUR AREA | Locally Sourced |
